| Categories | Grow Lights |
|---|---|
| Brand Name: | GrowBetter, RIKOLITE, OEM |
| Model Number: | CMH315 |
| Certification: | CE, RoHs |
| Place of Origin: | China |
| Power: | 315W |
| Lamp: | Ceramic Metal Halide |
| Ballast: | Low Frequency Digital Ballast |
| Item: | CMH Grow Light Fixture |
| MOQ: | 2 |
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 1~5 days for sample, 7~15 days for orders |
| Payment Terms: | T/T, Western Union, PayPal, TransferWise |
| Supply Ability: | 10000pcs/month |
| Company Info. |
| UME Import & Export Co., Limited |
| View Contact Details |
| Product List |

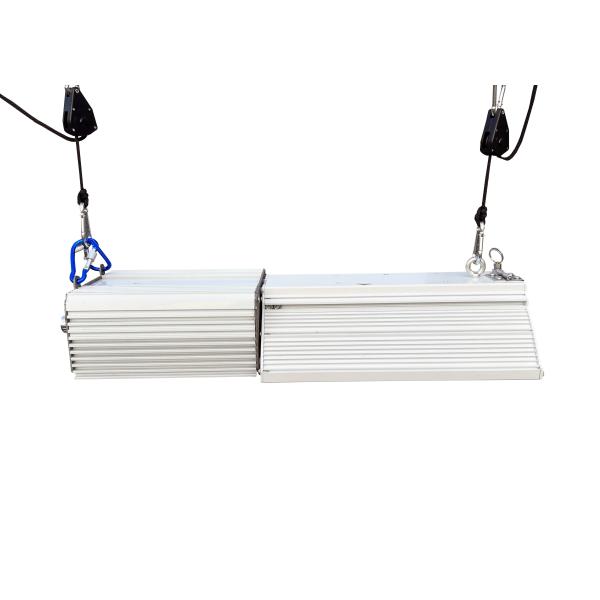

GrowBetter 315w CMH Grow Light System including:
• 1 x 315w PGZ18 Ceramic Metal Halide Grow Light Bulb;
• 1 x 315w Low Frequency Dimmable Digital Ballast;
• 1 x 2.0 meters power cord with plug
• 1 x light installation hanger
Key Features and Benefits
• High reflective reflector with inner silver coating technology, more grow lights towards crops;
• Top unique optical design, effective and uniform light distribution;
• Soft start low frequency square wave digital ballast, silent and stable quality;
• 6 phase dimmable output 50%-60%-70%-80%-90%-100%
• Broad full spectrum light fixture, glass reflector without oxidation problem;
• 50% yields increase, 30% less power, 30% growth speed up.
Specification
| Dimension | 459*207*90mm |
| Connector | IEC C14, power cable 2m with 230V |
| Operating Temperature | -25℃~40℃ |
| Reflector | Borosilicate glass, silver coated surface |
| Packing Size | 57 x 30 x 18 CM; 1 unit /carton |
| Gross Weight/ Volume Weight | 7.0 kg / 6.5 kg |
Average PPFD (µmol m-2 s-1)
Install Height | Radiation Area | GrowBetter 315w PGZ18 1 x 315w | |
| 1 .0 m | 1.2m*1.2m | 163.2 | |
| 1.5 m | 1.8m*1.8m | 77.09 | |
| 2.0 m | 2.4m*2.4m | 43.12 | |
| 2.5 m | 3.0m*3.0m | 28.53 | |
| 3.0 m | 3.6m*3.6m | 19.72 | |
| 4.0 m | 4.8m*4.8m | 11.37 |
Light Source: 315W PGZX18
| Description | Initial Lumens | CCT (K) | CRI (Ra) | PPF (µmol/s) | Lamp Nominal Wattage (w) | Lamp Nominal Voltage (v) | Lamp Nominal Current (A) |
| Single Ended CMH Lamp 315 Watt 930 | 37000 | 3100 | 90 | 580 | 315 | 105 | 3 |
| Single Ended CMH Lamp 315 Watt 942 | 32500 | 4200 | 95 | 530 | 315 | 105 | 3 |
Technical Parameters
| Digital Ballast 315W | |
| Model | H315DP-A |
| Dimension | 196 x 77 x 90 mm (7.7” x 3” x 3.5”) |
| Input Voltage | AC 165~270V (Rated Voltage220V) |
| Input Frequency | 50/60 Hz |
| Power Factor | >0.98 |
| Harmonic Distortion | ≤ 10% |
| Current Crest Ratio | ≤ 1.7 |
| Total Power | ≥ 94% (220Vac) |
| Input Power | ≤ 334w |
| Output Frequency | 100 Hz |
| 6-phase Dimming Function | output range 50% - 60% - 70% - 80%-90% -100% |
| Lamp Connector | IEC C14, power cable 2 meters with plug 0.45M, 180℃ heats resistant and 5 KV approved lamp cord |
| Insulation Resistance | Input ＝＝> Case ≥ 50MΩ |
| Voltage Resistance Test | Input ＝＝> Case (AC1500V < 50mA) |
| Operating Temperature | -25℃～ 40℃ |
Application
Indoor gardening plant growing, indoor hydroponics, commercial greenhouses, Grow Tents
|
