| Categories | Cold Climate Air Source Heat Pump |
|---|---|
| Brand Name: | Yushen |
| Model Number: | SLNA-009U(P) SLNA-007UVP , SLNA(B)-014UP |
| Certification: | CCC, ISO, CQC |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/day |
| Delivery Time: | 1-2weeks |
| Packaging Details: | Reinforced Carton box with wooden tray |
| Name: | Air To Air Heat Pumps In Cold Climates |
| Advantage: | Eco Friendly |
| Function: | both Cooling and heating |
| OEM: | Yes |
| Suitable working conditions: | -25C~+45C |
| Electricity: | 220V-3N-50hz |

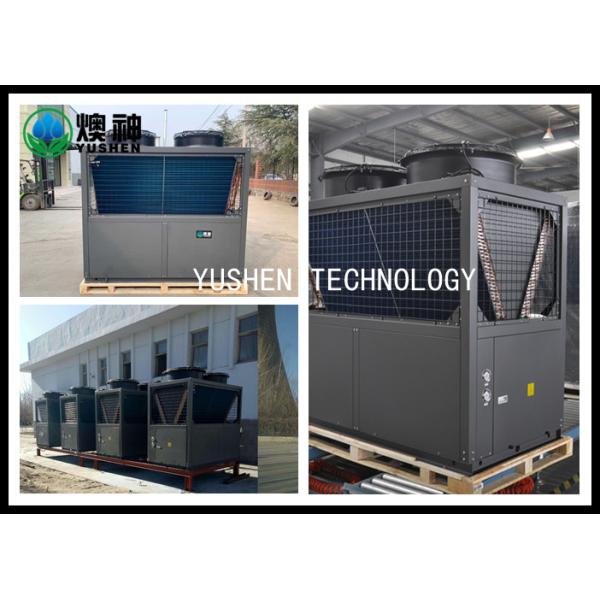

OEM Air To Air Heat Pumps In Cold Climates / Eco Friendly Air Exchange Heat Pump
Air To Air Heat Pumps In Cold Climates Features
1. Large-scale flat fins: extend the defrosting time interval, make the heat more durable; defrosting and draining quickly.
2, large static pressure box: the fins are more uniform over the wind, and the heat exchange efficiency is high.
3, jet increase: the lowest ring temperature -25 ° C, the highest water output 65 ° C.
Air To Air Heat Pumps In Cold Climates Parameters
| Model | SLNA-007UM | SLNA(B)-014U(P) | |||
| Compressor capacity | 2HP | 5HP | |||
| Function | Heating and Cooling | Heating and Cooling | |||
| Electricity | 220V-1N-50Hz | 220V-1N-50Hz | |||
| Working conditions | ℃ | -25~～+45 | -25~～+45 | ||
| Data | Heata | Nominal capacity | KW | 3.9 | 9.2 |
| Input power | KW | 1.69 | 3.96 | ||
| COP | / | 2.3 | 2.3 | ||
| Heating IPLV(H) | 2.53 | 2.6 | |||
| Coolb | Nominal capacity | KW | 4.4 | 11.0 | |
| Input power | KW | 1.69 | 4.31 | ||
| COP | / | 2.6 | 2.55 | ||
| Cooling IPLV(C) | 2.7 | 2.75 | |||
| A7W35c | KW/COP | 6.4/4.1 | 14.0/4.1 | ||
| A2W35 | KW/COP | 5.8/3.6 | 11.2/3.60 | ||
| A-7W35 | KW/COP | 4.3/2.7 | 9.5/3.0 | ||
| A-15W55 | KW/COP | 3.4/1.9 | 8.4 /1.94 | ||
| A-20W45 | KW/COP | 2.9/1.94 | 7.7/2.00 | ||
| Max. running currency | A | 13.2 | 30 | ||
| Compressor quantity | set | 1 | 1 | ||
| Refrigerant/charging quantity kg | / | R404A/2.2 | R22/4.50 | ||
| Air blow type | / | Side | Side | ||
| Water pipe diameter | inch | G1〞 | G1.2〞 | ||
| Rating flow | m³/h | 1.6 | 2.5 | ||
| Water side pressure loss | kPa | ≤35 | ≤35 | ||
| Noise level | dB(A) | 59 | 61 | ||
| Overall dimensions(L×W×H) | mm | 1087×435×901 | 1120×440×1360 | ||
| Weight | kg | 70 | 130 | ||
a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity
b:Nominal refrigeration conditions: ambient dry bulb temperature 35℃, outlet water temperature 7℃, water flow 0.172 * nominal cooling capacity
c:A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃
