YGDRS Yellow Thin Wall Plastic Tube , Thin Heat Shrink Tubing φ1 - φ150MM

Categories Thin Wall Heat Shrink Tubing
Brand Name: UPTOGETHER
Model Number: YGDRS
Certification: SGS
Place of Origin: Jiangsu, China (Mainland)
MOQ: 400 Meter/Meters
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 50000 Meter/Meters per Day
Delivery Time: 1-15days
Packaging Details: Carton
Material: PE
Rated Voltage: 1kV
Shrink Ratio: 2:1
Type: Insulation Sheet, Flame Resisitance,Halogen Free
Application: Low Voltage
Tensile Strength: 12 N/mm2
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

YGDRS Yellow Thin Wall Plastic Tube , Thin Heat Shrink Tubing φ1 - φ150MM

Yellow green thin wall heat shrink tube YGDRS , φ1-φ150mm , yellow-green strips , PE


1. Product Introduction

YGDRS series of yellow green tube are series are yellow colour tubes with green stripes. They are used for insulating earth (ground) wires and conform to requirements of International colour code practice for such applications. They are flexible, flame retardant and resistant to most of the common solvents. They meet Rohs requirements of the EU.


2. Technical Parameter

PropertyTest MethodResult
Tensile StrengthASTM D63812 N/mm2
ElongationASTM D638300%
Heat Shock@250℃/30’ASTM D2671No Cracking .No Flow
Cold Blend@-30℃ASTM D2671No Cracking
Dielectric StrengthASTM D14915kv/mm
Voltage Withstand@2.5kv for 60 secNo breakdown
Volume ResistivityASTM D2571x1014Ω.cm
Longitudinal ChangeASTM D2671Inside +/- 5%

3. Specification Packaging

SizeBefore Applied (mm)After Applied (mm)Package
(mm)Internal Diameter

Wall

Thickness

Internal Diameter

Wall

Thickness

(M/Spool)
Ø3.0/1.53.5±0.20.18±0.05≤1.50.35±0.05200
Ø3.5/1.754.0±0.20.18±0.05≤1.750.40±0.05200
Ø4.0/2.04.5±0.20.20±0.05≤2.00.40±0.05100
Ø5.0/2.55.5±0.30.20±0.08≤2.50.40±0.08100
Ø6.0/3.06.5±0.30.20±0.08≤3.00.40±0.08100
Ø7.0/3.57.5±0.30.20±0.08≤3.50.42±0.08100
Ø8.0/4.08.5±0.30.20±0.08≤4.00.42±0.08100
Ø9.0/4.59.6±0.30.22±0.08≤4.50.45±0.08100
Ø10.0/5.010.6±0.40.22±0.08≤5.00.45±0.08100
Ø11.0/5.511.6±0.40.22±0.10≤5.50.45±0.10100
Ø12.0/6.012.6±0.40.22±0.10≤6.00.45±0.10100
Ø13.0/6.513.6±0.40.23±0.10≤6.50.46±0.10100
Ø14.0/7.014.6±0.40.23±0.10≤7.00.46±0.10100
Ø15.0/7.515.6±0.50.23±0.10≤7.50.46±0.10100
Ø16.0/8.016.6±0.50.25±0.10≤8.00.50±0.10100
Ø18.0/9.018.6±0.50.25±0.10≤9.00.55±0.10100
Ø20.0/10.020.6±0.60.25±0.10≤10.00.55±0.10100
Ø22.0/11.022.6±0.60.28±0.10≤11.00.60±0.10100
Ø25.0/12.025.6±0.60.30±0.10≤12.00.65±0.1025
Ø28.0/14.028.8±0.80.30±0.10≤14.00.65±0.1025
Ø30.0/15.030.8±0.80.33±0.10≤15.00.70±0.1025
Ø35.0/17.536.0±1.00.35±0.10≤17.50.75±0.1025
Ø40.0/20.041.0±1.00.35±0.10≤20.00.75±0.1025
Ø50.0/25.051.0±1.00.40±0.10≤25.00.80±0.1025
Ø60.0/30.061.0±1.00.40±0.10≤30.00.80±0.1025
Ø70.0/35.071.0±1.00.40±0.10≤35.00.80±0.1025
Ø80.0/40.081.0±2.00.45±0.10≤40.00.90±0.1025
Ø90.0/45.091.0±2.00.45±0.10≤45.00.90±0.1025
Ø100.0/50.0102.0±2.00.50±0.10≤50.01.0±0.2025
Ø120.0/60.0122.0±2.00.50±0.10≤60.01.0±0.2025
Ø150.0/75.0152.0±2.00.50±0.10≤75.01.0±0.2025

4. Ordering information

Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

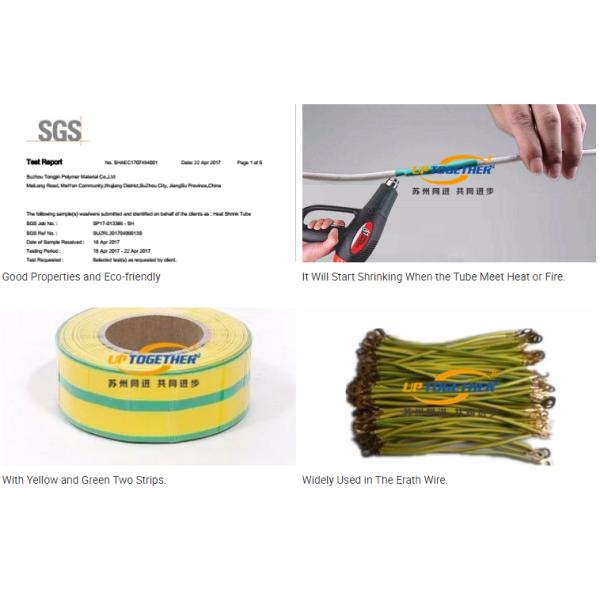

5. Application case
