| Categories | Precision Shoulder Screws |
|---|---|
| Brand Name: | Runtai |
| Model Number: | Flared-Collar Knurled-Head Thumb Screws |
| Certification: | ISO9001/TS16949 |
| Place of Origin: | Jiangsu, China (Mainland) |
| MOQ: | 50000 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A |
| Supply Ability: | 5 Ton/ days |
| Delivery Time: | 15-20 working days |
| Packaging Details: | PP bag+Carton box+ Wooden Pallet |
| Size: | M1-M30 for choose |
| Material: | Steel, Stainless Steel, Brass, Aluminum Alloy |
| Grade: | 4.8 8.8 10.9 12.9 for choose |
| Surface treatment: | zinc plated, nickel plated, black phosphates for choose |
| Standard: | DIN ISO JIS ANSI |
| Products Name: | Zinc Plated Steel Flared-Collar Knurled-Head Thumb Screws |

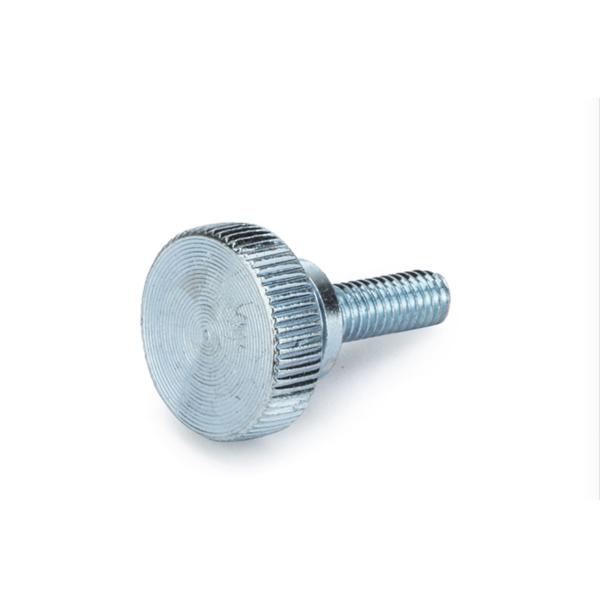

Zinc Plated Steel Flared-Collar Knurled-Head Thumb Screws Raised Knurled-Head Adjustment Screws
Products Description
These raised knurled-head thumb screws have a raised head that makes them easy to grip. They have a slightly raised head and a decorative flared collar. The head is knurled for slip-resistant controlled adjustment. Length is measured from under the flange. A zinc plated finish provides corrosion resistance in wet environments. Length is measured from under the collar.
Products Specification
| Material | Zinc Plated Steel |
| Thread Size | M6 |
| Thread Pitch | 1 mm |
| Length | 16 mm |
| Threading | Fully Threaded |
| Head, mm | |
| Diameter | 24 |
| Height | 5 |
| Collar, mm | |
| Diameter | 12 |
| Height | 11 |
| Tensile Strength | 70,000 psi |
| Hardness | Rockwell B84 |
| Thread Type | Metric |
| Thread Spacing | Coarse |
| Thread Fit | Class 6g |
| Thread Direction | Right Hand |
| Head Texture | Knurled |
| Head Type | Thumb |
| Thumb Screw Head Shape | Round |
| Round-Head Thumb Screw Profile | Raised |
| System of Measurement | Metric |
| RoHS | Compliant |
Note: Material, Size and Surface Treatment for choose.
More Products Pictures



|
