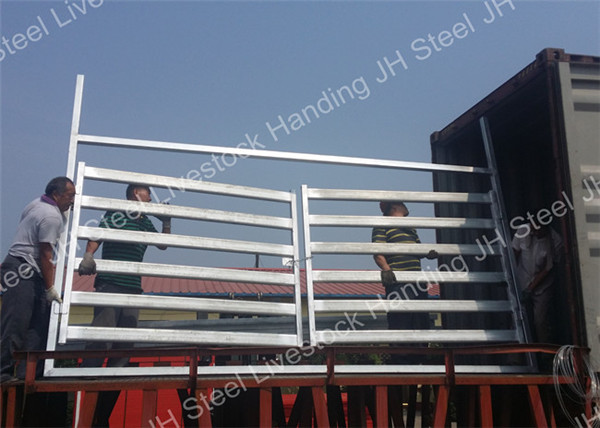

Australia Style Tubular Cattle Yard Panel Livestock Cattle Yard Gate

Australia Style Tubular Cattle Yard Panel Livestock Cattle Yard Gate

Cattle panels is designed for the safe and effective flow of cattle in the lead up to the race, reducing stress on livestock by separating operator and beast.

Cattle panel can have different shapes, below are the popular shapes and specification on the market.

One of our most basic products is livestock panels and gates for cattle, sheep, goat, horse yard.

We use different materials for the rails in our panels and gates.

• 42 x 1.6 mm gal round rail
• 50 x 50 x 1.6/2.0 mm gal square rail (SHS)
• 60 x 60 x 2.0/3.0 mm gal square rail (SHS)
• 75 x 40 x 1.6/2.0 mm gal oval rail
• 115 x 42 x 2.0 mm gal oval rail

Key features:

1. Panels can be installed by connectors or buried into ground

2. Rails welded on all four sides of each Panel

3. Weather caps welded to top of posts

4. Manufactured from pre-galvanized steel

5. All panels supplied HD galvanized inside and outside

We offer post upgrade for permanent yard. Our standard panel posts are manufactured with gal material that 48mm or 89mm. And panels comes with pin and lug joining system for portable yard.

Livestock panel and gate can be ordered to suit your required type and size. They offer a highly flexible solution for managing your cattle or horse yard.

Swing Gates

Double gate: Height 2600mmx Length 4000mm

Single gate: Height 2600mmx Length 2900mm

Frame: Horizontal & Vertical pipe: 60mm x 60mm RHS with fully welded caps

Cattle Gate Horizontal rail: 115mmx 42mm x 6 Oval anti-bruise rails

Finish: Fully hot-dipped galvanized

Fully welded oval pipes, post &brackets , heavy duty hinges

Supplied with two HDG Bolt Pins with Nuts

Man-way Swing Gates

Height 2600mm gate inner width 800mm

Frame: Horizontal & Vertical pipe: 60mm x 60mm RHS with fully welded caps

Cattle Gate Horizontal rail: 115mmx 42mm x 6 Oval anti-bruise rails

Finish: Fully hot-dipped galvanized

Fully welded oval pipes, post &brackets , heavy duty hinges

Supplied with two HDG Bolt Pins with Nuts
