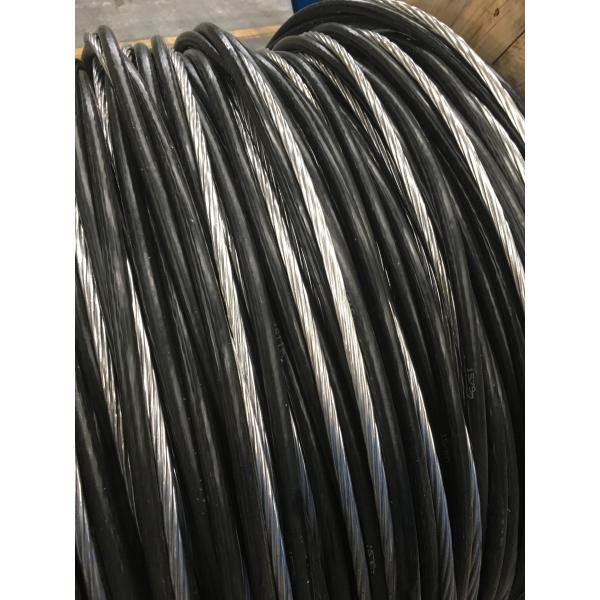

Name: Sheathed Overhead Insulated Cable ABC Aluminum Stranded Wire 3X95 Mm2
Brand: YIFANG
Price: 0.1 USD

Home > Power Cables >

Sheathed Overhead Insulated Cable ABC Aluminum Stranded Wire 3X95 Mm2

Contact Now

Add to Cart

Company Info.

Zhengzhou Yifang Cable Co., Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Construction of NFC 33-209 Standard ABC Cable

Cross Section of Conductor (mm2)	Min.Nos. of Wires for Conductor (mm)	Insulation Thickness (mm)	Average Max. O.D.per Single-core (mm)	Max.Conductor Resistance at 20ºC (Ω/km)	Min Insulated Resistance at Rated Working Temperature (MΩ.km)		Cable Tensile Breaking Force
Cross Section of Conductor (mm2)	Min.Nos. of Wires for Conductor (mm)	Insulation Thickness (mm)	Average Max. O.D.per Single-core (mm)	Max.Conductor Resistance at 20ºC (Ω/km)			Cable Tensile Breaking Force
2x10	6	1.00	6.5x13.0	3.08	0.0067	0.67	1650
2x16	6	1.20	8.0x16.0	1.91	0.0065	0.65	2512
2x25	6	1.20	9.4x18.8	1.2	0.0054	0.54	3762
2x35	6	1.40	11.0x22.0	0.868	0.0054	0.54	5177
2x50	6	1.40	12.3x24.6	0.641	0.0046	0.46	7011
2x70	12	1.40	14.1x28.2	0.443	0.004	0.4	10354
2x95	15	1.60	16.5x33.0	0.32	0.0039	0.39	13727
2x120	15	1.60	18.1x36.2	0.252	0.0035	0.35	17339
2x150	15	1.80	20.2x40.4	0.206	0.0035	0.35	21033
2x185	30	2.00	22.5x45.0	0.164	0.0035	0.35	26732
2x240	30	2.20	25.6x51.2	0.125	0.0034	0.34	34679
4x10	6	1.00	6.5x26.0	3.08	0.0067	0.67	1650
4x16	6	1.20	8.0x32.0	1.91	0.0065	0.65	2512
4x25	6	1.20	9.4x37.6	1.2	0.0054	0.54	3762
4x35	6	1.40	11.0x44.0	0.868	0.0054	0.54	5177
4x50	6	1.40	12.3x49.2	0.641	0.0046	0.46	7011
4x70	12	1.40	14.1x56.4	0.443	0.004	0.4	10354
4x95	15	1.60	16.5x66.0	0.32	0.0039	0.39	13727
4x120	15	1.60	18.1x72.4	0.252	0.0035	0.35	17339
4x150	15	1.80	20.2x80.8	0.206	0.0035	0.35	21033
4x185	30	2.00	22.5x90.0	0.164	0.0035	0.35	26732
4x240	30	2.20	25.6x102.4	0.125	0.0034	0.34	34679

Product Tags:

service drop cable
