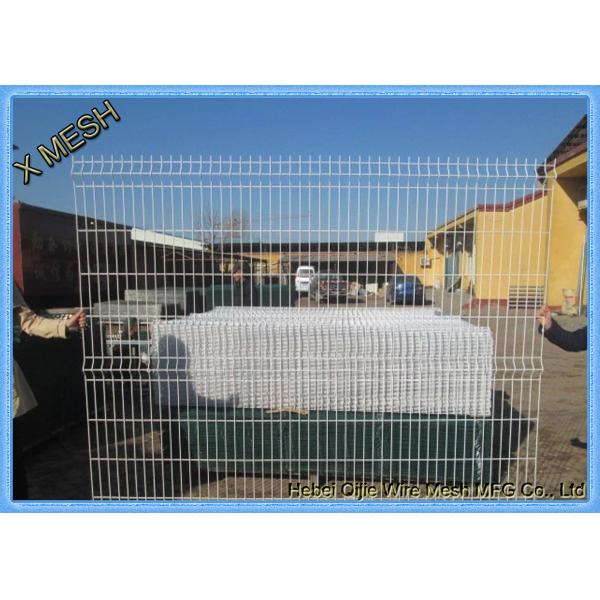

2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm

2V 3V 3D PVC Coated Curved Welded Wire Mesh Fence 50*200mm
Product descriptions
3D Curved Welded Wire Fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.


Material:
Mesh Size(common):
Wire Diameter: 4/5mm, 5/6mm, 5/5mm
Mesh opening: 50*100mm, 50*200mm, 55*100mm, 55*200mm, 50*150mm
Post Size: (three kinds)
(1)Circular Pipe Post:
Diameter: 48mm, 60mm, 75mm, etc.
Thickness: 1.0mm, 1.5mm, 2.0mm, etc.
(2)Square Pipe Post:
Diameter: 50mm, 60mm, 80mm, etc
Thickness: 1.0mm; 1.5mm; 2.0mm, etc
(3)Peach-style Pipe Post
Height & Width of the Fence(common): 1.8mx3.0m; 2.0mx3.0m
Surface treatment: Hot galvanized; Electro galvanized; PE coated and PVC coated
Colors, 6005 dark green, grey, white, yellow, lawn green and red. Same colors are used for panels and posts commonly, while different colors can also be used to form a contrast.

• Excellent corrosion resistance, anti-aging and anti-aging property.
• Sunshine resistance and weather-proof.
• With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
• Have four horizontal bending rebar therefore it will strengthen the fence network.
• Not only has a beautiful outlook but also has a durable structure.
• Can withstand outdoor exposure.
• Easy and quick to transport and install.
• Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
• Bright, reflective colors stand out in day or night
• Easy transportation, save time and labor cost.

3D Curved Welded Wire Fence Applications:

• Mainly used in highway and railway bridge on both sides of the protection zone.
• Airports, ports, terminals security.
• Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
• Guest Houses, hotels, supermarkets and entertainment protective.

Specifications of 3D Curved Welded Wire Fence

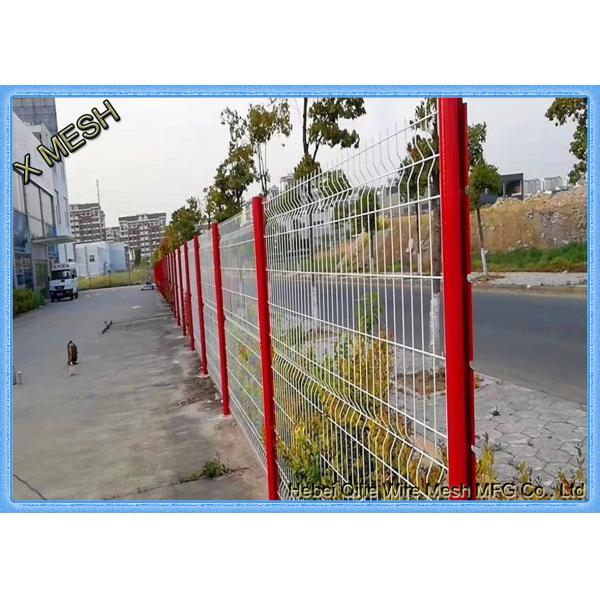

Perimeter Coated Welded Wire Fence Steel-P0005

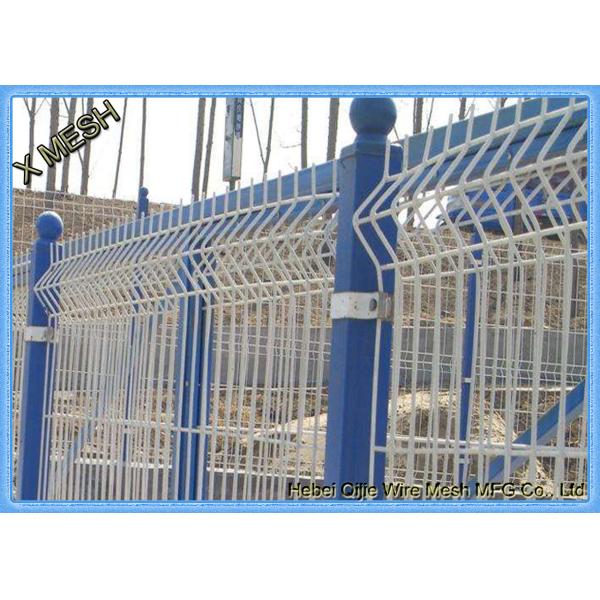

Perimeter Coated Welded Wire Fence Steel-P0006
