| Categories | Metal Tapping Screws |
|---|---|
| Brand Name: | Runtai |
| Model Number: | Tapping Screws |
| Certification: | ISO9001/TS16949 |
| Place of Origin: | Jiangsu, China (Mainland) |
| MOQ: | 50000 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5ton/day |
| Delivery Time: | 14-21 days |
| Packaging Details: | Poly bag+Cartoon Box+ Wooden Pallet |
| Products Name: | Yellow Chromated Steel Hexagon Flange Head Self Drilling Tapping Screws with Plastic Washer |
| Material: | Stainless Steel Brass Copper Aluminum Alloy Steel |
| Standard: | DIN,ANSI,JIS,ASTM,GB |
| Size: | M1-M30 for choose |
| Surface Treatment: | Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide |
| Grade: | 4.8 8.8 10.9 12.9 for choose |

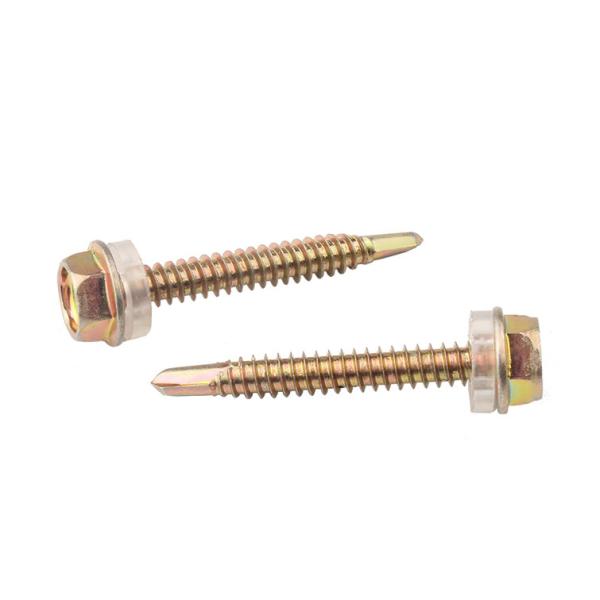

Yellow Chromated Steel Hexagon Flange Head Self Drilling Tapping Screws with Plastic Washer
Products Description
These steel screws have corrosion-resistant finishes. A hex head provides a secure grip with a wrench and a flange reduces the risk of crushing thin metal. They save you time and effort by drilling their own holes and fastening in a single operation. Length is measured from under the flange. Head height includes the flange.
.
Products Specification
| Material | Zinc-Plated Steel |
| Screw Size | No. 10 |
| Screw Size Decimal Equivalent | 0.19" |
| Length | 3/4" |
| Drill Tip | |
| Type | No. 3 |
| Length | 1/4" |
| Maximum Drilling Thickness | 0.15" |
| Head | |
| Width | 0.313" |
| Height | 0.151" |
| Flange Diameter | 0.414" |
| Drive Style | External Hex |
| Approximate Threads per Inch | 16 |
| Thread Direction | Right Hand |
| Threading | Fully Threaded |
| Tapping Method | Thread Forming |
| Tapping Screw Type | BSD |
| Head Type | Hex |
| Hex Head Profile | Standard |
| Tip Type | Drilling |
| Shank Cross Section | Round |
| Screw Features | Flanged |
| System of Measurement | Inch |
| For Use In | Steel, Sheet Metal |
| RoHS | Compliant |
Note: Material, Size and Surface Treatment for choose. OEM and ODM Products is welcomed
