| Categories | Steel Needle Roller Bearing |
|---|---|
| Brand Name: | NEKIB OR FUMSB |
| Model Number: | NAO20x37x16 |
| Certification: | ISO9001,IATF16949 |
| Place of Origin: | CHANGZHOU,CHINA |
| MOQ: | 100 |
| Price: | 0.1-100$ one piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300kpcs,30days |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Roll or single box |
| Structure: | Cylindrical |
| Type: | Needle roller bearing |
| Precision Rating: | P0 P6 P5 P4 P2 |
| Application: | machine tool |
| Specification: | Customed |
| HS Code: | 8482102000 |
| Company Info. |
| changzhou fums bearing co.,ltd |
| View Contact Details |
| Product List |
Needle roller bearings with cage without inner ring NA and NKI bearings are RNA and NK needle roller bearings without inner ring. This type of bearing has no inner ring and is suitable for supporting structures with restricted radial installation dimensions. The journal matching the bearing is used as the rolling surface directly. The shaft as the raceway surface must be hardened and ground, and only when it is processed to an appropriate size and shape accuracy, the entire set of needle bearings can have a higher life and running accuracy. At the same time, because there is no inner ring, the diameter of the shaft can be appropriately enlarged, which also increases rigidity.
Product Name | NAO20x37x16 Needle roller bearing NAO 20x37x16 Bearing size
20x37x16 mm |
OE NO. | Needle roller bearing NAO 20x37x16 |
Aftermarket | Oem Replacement |
Other No. | NAO20x37x16 |
Model | machine |
Price | Factory Price |
Size | Same as original |
Package | 1.one pcs one box 2.White box and carton 3.Customer brand design |
1) Precision: ABEC-1(P0), ABEC-3(P6), ABEC-5(P5), ABEC-7(P4)
2) Noise level: Z1, Z2, Z3, Z4
3) Vibration Level: V1, V2, V3, V4
4) Clearance: C2, C3, C4
6) Grease: As your requirement, such as SRL, PS2, Alvania R12 and so on.

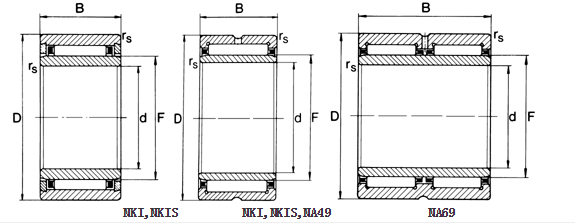

Shaft Diameter | Bearing Designation | Mass Approx | Borndary Dimensions | Basic Load Rating | Limiting Speed | |||||||
| Cr | Cor | |||||||||||
| d | F | D | B | Dynamic | Static | Oil | ||||||
| mm | Series | g | mm | N | rpm | |||||||
| NKI | NKIS | NA49 | NA69 | |||||||||
| 8 | -- | NKIS8 | -- | -- | 46 | 8 | 14 | 25 | 16 | 12400 | 11300 | 21500 |
| 9 | NKI9/12 | -- | -- | -- | 14.6 | 9 | 12 | 19 | 12 | 6200 | 7002 | 21700 |
| 10 | NKI10/16 | -- | -- | -- | 27.3 | 10 | 14 | 22 | 16 | 9808 | 10500 | 19650 |
| -- | -- | NA4900 | -- | 21 | 10 | 14 | 22 | 13 | 8006 | 9000 | 23700 | |
| -- | -- | -- | NA6900 | 38.4 | 10 | 14 | 22 | 22 | 8281 | 11612 | 23700 | |
| 12 | -- | -- | NA4901 | -- | 25.1 | 12 | 16 | 24 | 13 | 5047 | 6352 | 20000 |
| NKI12/20 | -- | -- | -- | 39 | 12 | 16 | 24 | 20 | 14000 | 18400 | 21000 | |
| -- | -- | -- | NA6901 | 44.5 | 12 | 16 | 24 | 22 | 11647 | 17052 | 19100 | |
| -- | NKIS12 | -- | -- | 58 | 12 | 18 | 30 | 16 | 16000 | 17000 | 19100 | |
| 15 | NKI15/16 | -- | -- | -- | 38 | 15 | 19 | 27 | 16 | 8847 | 12853 | 18800 |
| NKI15/20 | -- | -- | -- | 45.7 | 15 | 19 | 27 | 20 | 12347 | 19053 | 18800 | |
| -- | -- | NA4902 | -- | 32 | 15 | 20 | 28 | 13 | 6447 | 9053 | 17000 | |
| -- | -- | -- | NA6902 | 61.6 | 15 | 20 | 28 | 23 | 13100 | 20900 | 20000 | |
| -- | NKIS15 | -- | -- | 90 | 15 | 22 | 35 | 20 | 23500 | 24000 | 17000 | |
| 17 | NKI17/16 | -- | -- | -- | 41.4 | 17 | 21 | 29 | 16 | 13000 | 18200 | 17000 |
| -- | -- | NA4903 | -- | 32.8 | 17 | 22 | 30 | 13 | 7010 | 10010 | 16700 | |
| -- | -- | -- | NA6903 | 68.2 | 17 | 22 | 30 | 23 | 14400 | 24900 | 16200 | |
| 20 | NKI20/16 | -- | -- | -- | 48.5 | 20 | 24 | 32 | 16 | 10800 | 17000 | 14000 |
| -- | -- | NA4904 | -- | 70.2 | 20 | 25 | 37 | 17 | 11912 | 16594 | 16200 | |
| -- | NKIS20 | -- | -- | 119 | 20 | 28 | 42 | 20 | 26500 | 35500 | 14000 | |
| 22 | NKI22/16 | -- | -- | -- | 50 | 22 | 25 | 34 | 16 | 8721 | 15340 | 16200 |
| -- | -- | NA49/22 | -- | 76 | 22 | 28 | 39 | 17 | 12996 | 19175 | 14360 | |
| -- | -- | -- | NA69/22 | 130 | 22 | 28 | 39 | 30 | 21375 | 35750 | 14360 | |
| 25 | NKI25/30 | -- | -- | -- | 115 | 25 | 29 | 38 | 30 | 31500 | 56000 | 14000 |
| -- | -- | NA4905 | -- | 76 | 25 | 30 | 42 | 17 | 13452 | 20475 | 13832 | |
| -- | -- | -- | NA6905 | 138 | 25 | 30 | 42 | 30 | 19300 | 31750 | 13832 | |
| -- | NKIS25 | -- | -- | 160 | 25 | 32 | 47 | 22 | 32000 | 55000 | 12500 | |
| 28 | -- | -- | NA49/28 | -- | 90.7 | 28 | 32 | 45 | 17 | 13900 | 20100 | 13832 |
| -- | -- | -- | NA69/28 | 170 | 28 | 32 | 45 | 30 | 22400 | 36850 | 13832 | |
| 32 | NKI32/20 | -- | -- | -- | 101 | 32 | 35 | 45 | 20 | 13851 | 26900 | 12382 |
| -- | -- | NA49/32 | -- | 150 | 32 | 40 | 52 | 20 | 19000 | 32600 | 11134 | |
| -- | -- | -- | NA69/32 | 272 | 32 | 40 | 52 | 36 | 25500 | 68500 | 11134 | |
| 35 | NKI35/30 | -- | -- | -- | 165 | 35 | 40 | 50 | 30 | 22200 | 51350 | 11134 |
| -- | -- | NA4907 | -- | 151 | 35 | 42 | 55 | 20 | 19800 | 41500 | 11134 | |
| -- | -- | -- | NA6907 | 301 | 35 | 42 | 55 | 36 | 26000 | 60500 | 11134 | |
| -- | NKIS35 | -- | -- | 210 | 35 | 43 | 58 | 22 | 33000 | 56000 | 9500 | |
| 40 | NKI40/20 | -- | -- | -- | 124 | 40 | 45 | 55 | 20 | 22000 | 48000 | 10127 |
| NKI40/30 | -- | -- | -- | 184 | 40 | 45 | 55 | 30 | 35000 | 86000 | 10127 | |
| -- | -- | NA4908 | -- | 123 | 40 | 48 | 62 | 22 | 31036 | 63873 | 8567 | |
| -- | -- | -- | NA6908 | 401 | 40 | 48 | 62 | 40 | 64000 | 112000 | 8567 | |
| 42 | NKI42/20 | -- | -- | -- | 138 | 42 | 47 | 57 | 20 | 26000 | 52500 | 9500 |
| 45 | NKI45/25 | -- | -- | -- | 218 | 45 | 50 | 62 | 25 | 36000 | 70000 | 8567 |
| NKI45/35 | -- | -- | -- | 289 | 45 | 50 | 62 | 35 | 41500 | 102000 | 8567 | |
| -- | -- | NA4909 | -- | 260 | 45 | 50 | 68 | 22 | 37000 | 69500 | 8052 | |
| -- | -- | -- | NA6909 | 479 | 45 | 50 | 68 | 40 | 61500 | 123500 | 8052 | |
| -- | NKIS45 | -- | -- | 306 | 45 | 55 | 72 | 22 | 43000 | 71000 | 7500 | |
an so on.
