Through Hole Slip Ring Precious Metal Contact 12 Circuits 10A 240 VAC/DC

Categories	Through Hole Slip Ring
Brand Name:	JINPATI
Model Number:	LPT025-1210
Certification:	ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin:	China
MOQ:	1PCS
Price:	Negotiable
Payment Terms:	TT/CC/Paypal
Supply Ability:	100K units/week
Delivery Time:	2 weeks ARO
Packaging Details:	Standard/On Request
Current Rating:	10A
Voltage:	240 VAC/DC
Circuit Number:	12

Contact Now

Add to Cart

Company Info.

JINPAT Electronics Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

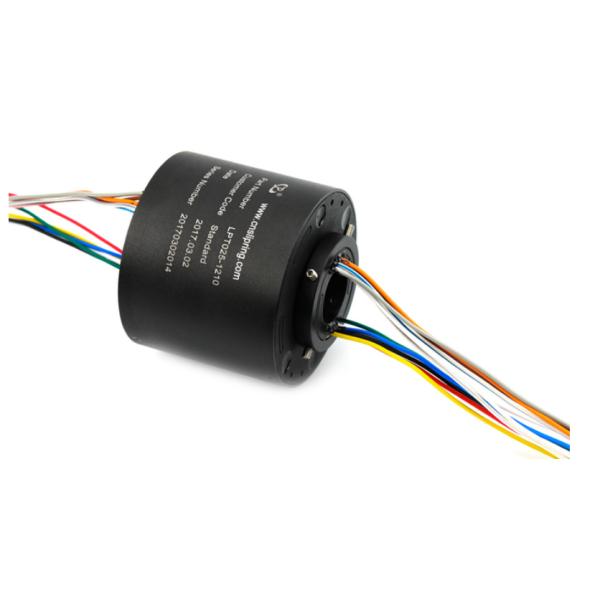

Through Hole Slip Ring Precious Metal Contact 12 Circuits 10A 240 VAC/DC

Description

The LPT025-1210 slip ringcan be used in any electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.

Outline Drawing

Specification

Circuits	12
Current Rating	10A
Voltage	240 VAC/DC
Dielectric Strength	1000V@50Hz between circuits
Insulation	500MΩ@500VDC
Hole Diameter	25.4 mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Wire Length	300mm (rotor), 300mm (stator)
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Product Display

Product Tags:

rotating slip ring

hollow shaft slip ring

Through Hole Slip Ring Precious Metal Contact 12 Circuits 10A 240 VAC/DC
