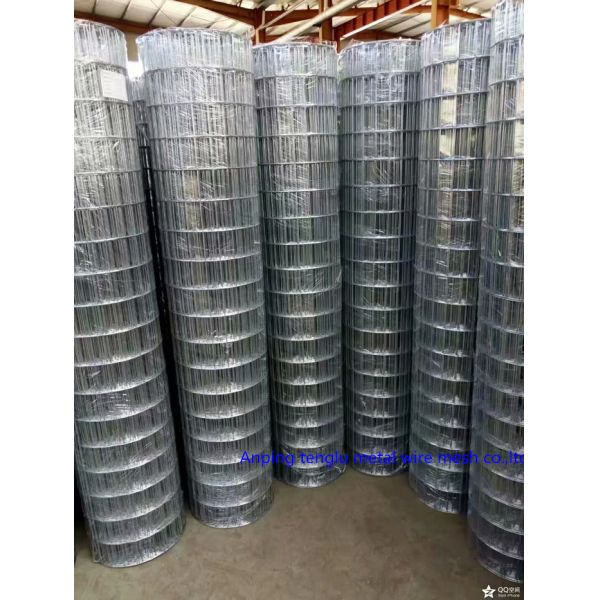

Bbq Grill Grate Welded Wire Mesh 1x1 Stainless Steel Square Hole Shape Untreatment

1x1 stainless steel welded wire mesh,stainless steel bbq grill grate welded wire mesh panel,straight welded wire mesh

Company information

We have manufacture and export stainless steel wire mesh for 15 years so far,during this period of time we have gathered rich experience in terms of production technique of wire mesh and export standard,this lead us have ability to provide good quality wire mesh product while ensure shortest lead time.

Our stainless steel woven wire mesh woven type cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave.

For plain weave,our mesh size range is 1-500 mesh,

twill weave 325×325mesh,

plain dutch 70×400mesh,

twill dutch 400×2800mesh,

reverse dutch weave 720×150mesh.

Our company website is www.stainlesssteelwiremeshfactory.com,our product range also cover following items,

stainless steel woven wire mesh
welded wire mesh
crimped wire mesh
hexagonal wire mesh
expanded wire mesh

We supply Galvanized Welded Wire Mesh, Stainless Steel Welded Wire Mesh and

PVC Welded Wire Mesh with high quanlity,favorable price and excellent service.

1) Material about welded wire mesh

Electro galvanized wire, hot-dipped galvanized.

[Electro galvanized]

Electro galvanizing, uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance. Common electro galvanized wire on zinc amount is 8-13 g/m².
[Hot-dipped galvanized]
Hot-dipped galvanized, coated thickness and nonuniform coating. Coating are usually 45-300 microns with darker color and good corrosion resistance. Hot-dip galvanized wire amout of zinc: 30-60 g/m²

2) Welding Type

Electro galvanized before welded wire mesh

Electro galvanized after welded wire mesh

Hot-dipped galvanized before welded wire mesh

Hot-dipped galvanized after welded wire mesh

Iron/galvanized wire+pvc coated

Mesh	Stainless steel welded wire mesh in roll
Mesh	Wire Diameter	Width(feet)
1/4"×1/4"	23	2-7
3/8"×3/8"	19,20,21,22	2-7
1/2"×1/2"	16,17,18,19,20,21,22,23,24	2-7
3/4"×3/4"	16,17,18,19,20,21,22	2-7
1"×1/2"	16,17,18,19	2-7
1"×1"	14,15,16,17,18,19,20,21	2-7
1"×2"	14,15,16	2-7
2"×2"	14,15,16,18	2-7
2"×2"	10,11,12	2-8.2
We can customize special size as per your demand
Mesh	Stainless steel welded wire mesh panel
Mesh
2"×3"	8,10,12	2-8.2
2"×4"	6,8,11,12	2-8.2
3"×3"	6,8,10,11	2-8.2
4"×4"	3,4,5,6,8,9,10	2-8.2
4"×6"	3,4,5,6,8,9,10	2-8.2
6"×6"	0,2,4,6,7,8,9	2-8.2

Our other products

The available material for choose of wire mesh include stainless steel,low carbon steel,galvanized,brass,copper,epoxy,zinc coated.

We welcome clients enquiry from all over the world.

Product Tags:


*From:	Your email address is incorrect!
*To:	Anping tenglu metal wire mesh co.,ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Welded Wire Mesh
Place of Origin:	Hengshui,China
MOQ:	500 square meter
Supply Ability:	1500 square meters per day
Packaging Details:	plastic film inside and waterproof paper outside
Material:	Stainless steel
Type:	Welded mesh,wire mesh
Hole shape:	Square
Application:	Construction Wire Mesh, welded wire mesh fence
Surface treatment:	Untreatment
Length:	30m or customized
