| Categories | Building Construction Equipments |
|---|---|
| Brand Name: | SINOWAY |
| Model Number: | SWAP90CH |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 unit |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 200 units per year |
| Delivery Time: | 45 days |
| Packaging Details: | Nude |
| Max. paving width: | 9000mm |
| Max. paving thickness: | 350mm |
| Max. theoretic productivity: | 700 t/h |
| Gradeability: | 20% |
| Heating type: | Gas |
| Hopper capacity: | 14 t |
Road Construction Equipment

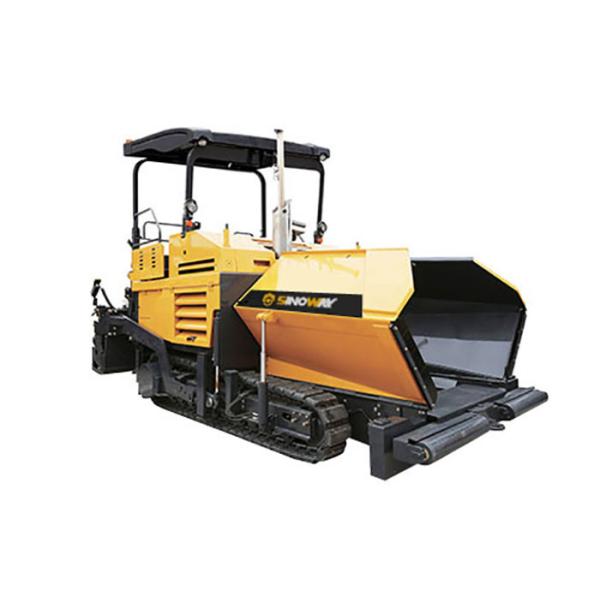

Asphalt paver (aslo called paver finisher, asphalt finisher, paving
machine) is a piece of construction equipment used to lay hot
asphalt on roads, bridges, parking lots and other such places. It
lays the asphalt flat and provides minor compaction before it is
compacted by a tandem vibratory roller.
Sinoway asphalt paver collection is best for your paving
applications. From 4.5 meters paving width wheeled asphalt paver,
to 12.5 meters width full hydraulic crawler asphalt paver, there is
right paver for your pavement project.
Main Advantages
| Engine | |
| Model | SC8D |
| Type | Six-cylinder turbocharged, mechanical injection |
| Rated power | 140KW |
| Rated speed | 2300rpm |
| Main Technical Specification | |
| Basic paving width | 3000mm |
| Max. paving width | 9500mm |
| Max. paving thickness | 350mm |
| Travelling speed | 0~3.3km/h |
| Paving speed | 0~16.5m/min |
| Max. theoretic productivity | 700t/h |
| Operating weight | 21300~28800kg |
| Gradeability | 20% |
| Transverse leveling accuracy | ±0.03% |
| Travelling Equipment | |
| Transmission | Full hydraulic |
| Undercarriage | Track type |
| Working Equipment | |
| Screed plate | |
| Basic width | 3000~9500mm |
| Grade adjustment | -1~+4% |
| Extension model | Mechanical |
| Heating | Gas heating |
| Tamper frequency | |
| Frequency | 0~25Hz |
| Vibrating frequency | |
| Frequency | 0~42Hz |
| Hopper | |
| Capacity | 14000Kg |
| Discharge type | Hydraulic |
| Dimensions | |
| Overall length | 6820mm |
| Overall width | 3798mm |
| Overall height | 3850mm |

|
