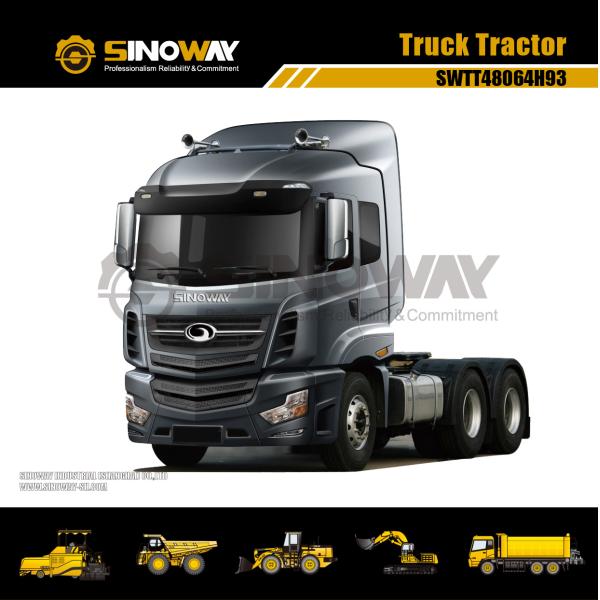

480HP Powerful Tractor Truck 6x4 Heavy Duty

Categories Construction Dump Truck
Brand Name: SINOWAY
Model Number: SWTT48064H93
Certification: ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 units per month
Delivery Time: 30 days
Packaging Details: Nude
Product name: Truck Tractor
Engine: YC6K1248(German tech)
Rated power: 353kW/480Hp/1900rpm
Displacement: 11.8 L
The fifth wheel: JOST3.5"
Peak traction capacity: 100000Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

480HP Powerful Tractor Truck 6x4 Heavy Duty

480HP Powerful Tractor Truck 6x4 Heavy Duty Tractor Construction Dump Truck Truck Tractor With German Tech


Engine
ModelYC6K1248(German tech)
TypeSix cylinder,four-stroke,water-cooled,
in-line,dry-liner,direct-injection,turbo charged
Controller typeElectronic
Air cleanerDry paper element
Rated power353kW / 480Hp
Rated speed1900rpm
Max. torque2250N.m/1100-1450rpm
Bore × stroke128*153 mm
Displacement11.8 L
Main Technical Specification
Kerb weight10000Kg
GCW (Gross combination weight)100000Kg
Max.traveling speed80km/h
Min. turning radius8318mm
Grade ability30%
Min.ground clearance290mm
Approach angle19°
Departure angle45°
Fuel tank capacity600L
The fifth wheelJOST3.5"
Fuel consumption (empty loading)<30L/100km
Fuel consumption (full loading)<50L/100km
Dimensions
Overall size(L×W×H)7640×2500(2980)×3950mm
Wheel base3900+1350mm
Tread(F/R)2065/1860mm
Overhang(F/R)1550/840mm
Transmission System
FULLER tech mechanical transmission
with synchronizer
12 forward & 2 reverse

Ratio
Forward 112.1
Forward 29.41
Forward 37.31
Forward 45.71
Forward 54.46
Forward 63.48
Forward 72.71
Forward 82.11
Forward 91.64
Forward 101.28
Forward 111
Forward 120.78
Reverse 111.56
Reverse 22.59
Steering System
Steering deviceZF
Driving positionLeft hand drive
TypeHydraulic assistance
Axle And Tyre
Front axle capacity10000kg
Front axle typeDisk
Rear axle capacity2×16000kg
Rear axle typeDrum
Ratio5.921
Tyre size12.00R20
Clutch And Brake
ClutchEATON
ABSWABCO
Service brakeFoot operated compressed air
braking system,two circuits,front/rear distribution
Parking brakeHand operated
spring brake system,
brake force applies on the rear axle
Auxiliary brakeJACOB engine brake
Emergency brakeTwo circuits,
front/rear distribution
Electric System
Batteries24 Volt/165Ah
System voltage24V
Suspension
Front suspensionTapered leaf spring 4
semi-elliptic leaf spring
Rear suspensionTapered leaf spring 9+6
semi-elliptic leaf spring
