6x4 Dump Truck 283KW / 385HP CUMMINS Engine HYVA Front lifting

Categories Construction Dump Truck
Brand Name: SINOWAY
Model Number: SWDT38564C9
Certification: ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 units per month
Delivery Time: 30 days
Packaging Details: Nude
Product name: Dump Truck Tipper
Engine: CUMMINS ISMe 385
Engine type: Six cylinder,four-stroke,water-cooled, in-line,dry-liner,direct-injection,turbo charged
Controller type: Electronic
Rated power: 283KW/1900rpm
Displacement: 10.8 L
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

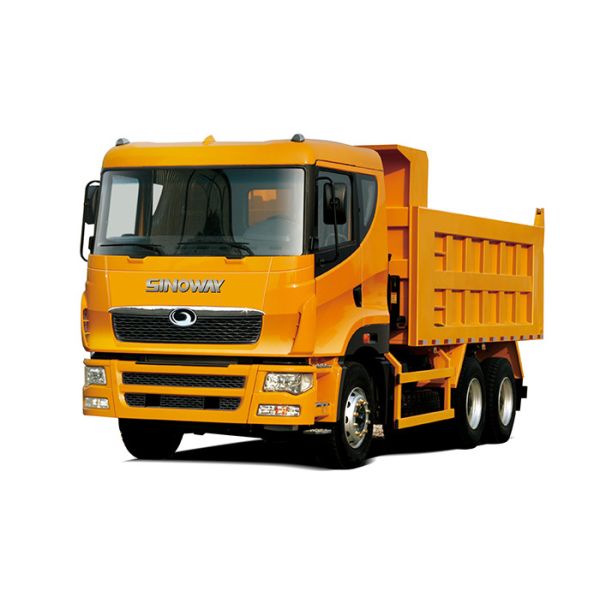

6x4 Dump Truck 283KW / 385HP CUMMINS Engine HYVA Front lifting

283KW/385HP CUMMINS Engine HYVA Front lifting 6x4 Dump Truck Construction Dump Truck


Engine
ModelCUMMINS ISMe 385
TypeSix cylinder,four-stroke,water-cooled, in-line,dry-liner,direct-injection,turbo charged
Controller typeElectronic
Air cleanerDry paper element
Rated power283KW
Rated speed1900rpm
Max. torque1825 N.m / 1200 rpm
Bore × stroke125*147 mm
Displacement10.8 L
Main Technical Specification
Curb Weight14500Kg
Payload capacity20000Kg
GVW34500Kg
Max. traveling speed85km/h
Grade ability30%
Approach angle25°
Departure angle24°
Fuel tank capacity320L
Dimensions
Overall size(L×W×H)8470×2500×3600mm
Wheel base3600+1350mm
Tread2065/1860mm
Overhang(L/R)1550/1970mm
Min.ground clearance285mm
Transmission System
ZF 9S1820 Mechanical (synchronizer)
Ratio
Forward15.16, 11.26, 7.9, 5.67, 4.07, 2.76, 1.94, 1.39, 1.00
Reverse12.26
Dump Body
Overall length5400mm
Overall width2300mm
Overall height1200mm
Side plate thickness6mm
Under floor thickness8mm
HoistHYVA front lifting
Steering System
Hydraulic steering with power assistance
Driving positionLeft hand drive
Axle And Tyre
Front axleStub axle with double T-cross section(7500kg)
Rear axleSingle reduction with hub reduction ( 2×13500kg)
Rear axle ratio5.73
Tyre size12.00R20
Electric System
Batteries2*12 Volt – 150 AH*2
Alternator24 Volt/70A
Starter24 Volt/7.80kw
Clutch And Brake
Single-plate dry coil-spring clutch, hydraulically operated with air assistance
Service brakeDual circuit compressed air brake
Parking brakeSpring energy operating on rear wheels
Auxiliary brakeEngine exhaust brake
Suspension
Front suspension9 semi-elliptic leaf spring
Rear suspension12 semi-elliptic leaf spring
