8x4 Construction Dump Truck Tipper 276KW / 375HP Power Left / Right Hand Drive

Categories Construction Dump Truck
Brand Name: SINOWAY
Model Number: SWDT37584H6
Certification: ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 units per month
Delivery Time: 30 days
Packaging Details: Nude
Product name: Dump Truck Tipper
Engine: SW6D18 375 German Tech AVL developed
Rated power: 276kw/1900rpm
Engine type: Inline, six-cylinder, four-valve, water-cooled, wet cylinder liners, turbocharged and intercooled
Displacement: 9.84 L
Tyre size: 12.00R20
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

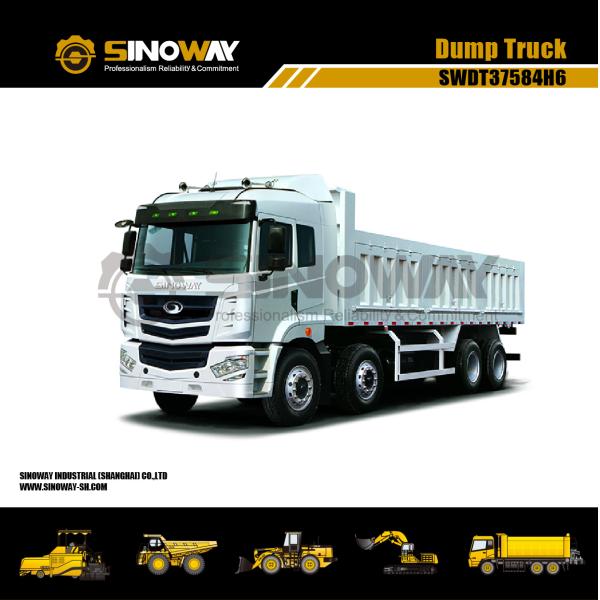

8x4 Construction Dump Truck Tipper 276KW / 375HP Power Left / Right Hand Drive

8x4 276KW/375HP Power Left/Right Hand Drive Construction Dump Truck Tipper With ZF Transmission System


Engine
MakeSW6D18 375 German tech, AVL developed,mechanical type, diesel fuel
TypeInline, six-cylinder, four-valve, water-cooled, wet cylinder liners, turbocharged and intercooled
Rated power276kw/1900rpm
Max. torque1720N.m/1250rpm
Displacement9.84 L
Main Technical Specification
Curb weight15470Kg
Max. payload capacity40000Kg
Rated axle loading capacity (Front)2×7500kg
Rated axle loading capacity (Rear)2×16000kg
Max. traveling speed72km/h
Max. grade ability30%
Approach angle25°
Departure angle24°
Fuel consumption35L/100km
Fuel tank capacity320L
Dimensions
Overall size(L×W×H)10450×2495×3360mm
Wheel base1850+4000+1350mm
Front overhang1512mm
Rear overhang1400mm
Transmission System
ZF tech transmission, mechanical with synchronizer
Ratio
Forward13.22, 10.54, 7.37, 5.21, 3.47, 2.16, 1.54, 1.00
Reverse14.26
Dump Body
Overall length7200mm
Overall width2300mm
Overall height1500mm
Side plate thickness6mm
Under floor thickness8mm
HoistHVYA front lifting
Steering System
Hydraulic steering with power assistance(HITACHI)
Driving positionLeft hand drive
Axle And Tyre
Front axleReinforced
Rear axleReinforced
Rear axle ratio5.263
Tyre size12.00R20
Electric System
Batteries2*12 Volt – 150 AH*2
Alternator24 Volt/70A
Starter24 Volt/7.80kw
Clutch And Brake
Single-plate dry coil-spring clutch, hydraulically operated with air assistance
Service brakeDual circuit compressed air brake
Parking brakeSpring energy operating on rear wheels
Auxiliary brakeEngine exhaust brake
Suspension
Front suspension9 semi-elliptic leaf spring
Rear suspension12 semi-elliptic leaf spring
