CS / ND / Stainless Steel Boiler Fin Tube Heat Exchanger For Boiler Economizers

Boiler Pressure Parts CS/ND/Stainless Steel Boiler Fin Tube Heat Exchanger For Coal-fired Boiler Economizers

Product Description

Finned tube is used to recover heat from flue gas exhaust of power plant boilers, industrial boilers, industrial kilns and marine power plants, make full use of waster heat, save energy, protect environment and reduce emissions, and improve fuel utilization rate, they are the strengthened heat exchange elements arranged at the tail of the fuel duct of the system.

There are spiral finned tubes and H-type finned tubes. Spiral finned tubes can further divided into high frequency resistance welding spiral finned tube, brazed spiral finned tube and integral spiral finned tube.

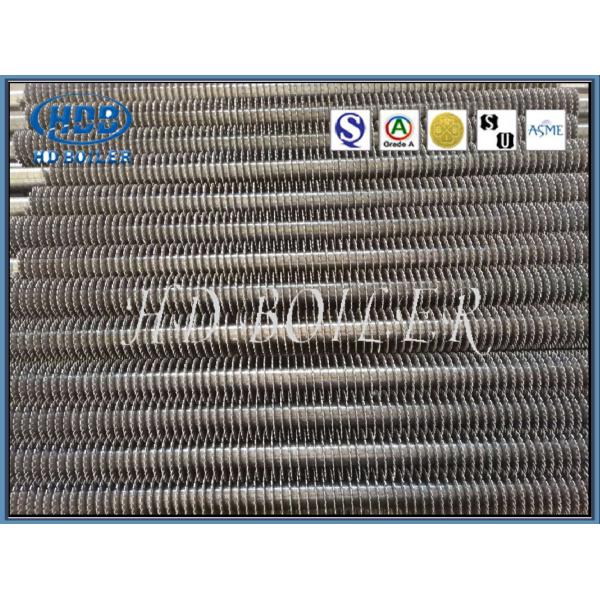

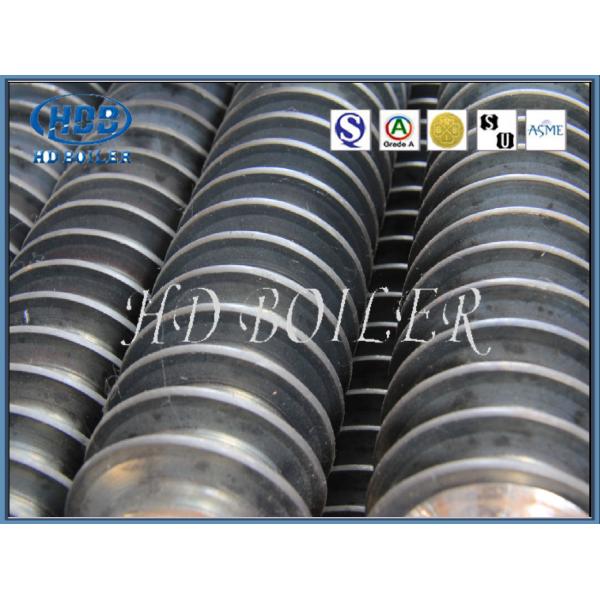

Spirial Finned Tube:

Spiral finned tubes are widely used in heat recovery of boiler economizer, air preheater, and waste heat boiler, as well as heat exchange equipment in chemical industry, pressure vessel and other fields. The capacity of units used in boilers has also increased from small to large, and their applications are increasing day by day. At present, many professional manufacturers in China can produce high frequency resistance welding, brazing spiral finned tubes, and the production equipment and technology of finned tubes have been developed, designed and manufactured from importation, digestion and absorption to self-development. The quality has reached the requirements of advanced foreign standards.

Advantages of using finned tubes:

1. the heat transfer area is increased in the effective space to improve the heat transfer effect.

2. Reduce the occupancy space of heat transfer surface and reduce its volume, especially for fast-loading boilers.

3. Reduce the equipment cost and improve the safety of equipment.

4. Due to the decrease of water side pressure drop, the operation cost is reduced.

5. The stiffness of finned tubes are increased, and the seismic resistance of the tube is improved.

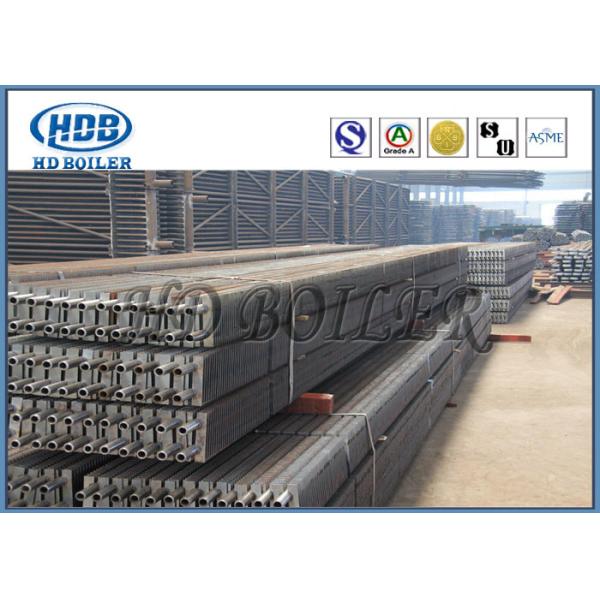

H-type Finned Tube:

Product Description:

H type finned tube is used to recover waster heat from flue gas exhaust of power plant boilers, industrial boilers, industrial kilns and marine power plant, make full use of waste heat, save energy and reduce emission to protect environment, improve fuel utilization rate, and they are the strengthened heat exchange elements arranged at the tail of the fuel duct of the system.

The utility model relates to a double H-type finned tube strengthened heat exchange element, which is characterized by:

• the fins are butt welded on the surface of the steel tube
• The contact of the fin welded parts adopts multiple zigzag shapes, the heating surface is is welded uniformly and firmly, the welding angle is formed uniformly and the surface is smooth, there is no slag inclusion pore weld, and the penetration rate reaches 97%.

Technical parameter

Features

1. The equipment body can be designed into many modules to ensure the long term and stable running;

2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage

3. Improve the heat transfer efficiency

4. Structure arrangement: In line or staggered arrangement

Company Introduction

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.

"Hua Dong" boilers include Utility Boiler, HRSG Boiler, coal-fired , oil(gas) -fired, coal-water-slurry-fired and garbage-fired steam/hot water boilers, organic heat carrier boilers, etc., and Boiler spare parts (Economizer, Finned tube, Header, Steam drum, Superheater, Water wall panel, Air preheater, Cyclone separator, etc., which are widely used in power generation, heat supply, chemical engineering, textile, food, paper, road building, plastic, rubber and wood working industries. "HD" boilers are honored as "Famous Production in Jiangsu Province", " Jiangsu High-Tech Product" and "Jiangsu Energy-Saving Product". "HD" brand is a "Famous Brand in Jiangsu Province". We are a qualified supplier for the top three boiler manufacturers in China(Harbin Boiler Co., Ltd., Dong Fang Boiler Group Co., Ltd., Shanghai Boiler Works Ltd.,). So far, Hua Dong Boilers have served 10000 customers, which sell well all over China and are exported to USA, Australia, Russia, Kazakhstan, India, Indonesia, South Africa, Brazil, and Southeast Asia.

We strive to manufacture "Safe, Efficient, Energy-Saving and Environment-Friendly" boilers, provide new-type products in excellent quality, serve users sincerely to their satisfaction, and be a top supplier of boilers in China.

Declaration

Zhangjiagang Hua Dong Boiler Co.,Ltd has no subsidiaries.

Packaging & Shipping

Company Business

Our products have been wildly used in power plants and large international companies overseas.
