EMC LVD 30W Dusk To Dawn LED Street Lights Aluminum Die Casting​ Housing

EMC LVD 30W high lumen led street lights Aluminum die casting​

Specification :
1 . Wide power range: 30W.60W.100W

2 . Special circuit design, single LED's damage won't affect others' normal work

3 . Modular design for easy installation, replacement and maintenance.

4 . High Lumen output up to 110lm/w with high quality LED chips

5 . Pass the 1000 hour salt spray test

6 . Vertical installation both available, adjustable by ±15°in both directions.

7 . Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

8 . Designed to last at least 100,000 hours at L70

9 . Multiple lighting distributions available

10 . CB/ CE/ IK08 /IP66 /LM79

11 . 5 years limited warranty available.

* Suitable to diameter 76mm pole
* High brightness LED chips 100lm/w
* Dusk to dawn Photocell function available
* 0-10V Dimmable/DALI/PMMA available
* CE/ROHS/LM79/LM80 for quality assurance and safety operation
* IES files are available
* 5 years warranty

* IP66 waterproof rating
* Different type lens for choice
* Working environment in -40℃to 55℃

Specification :

Product Details :

Product dimension:

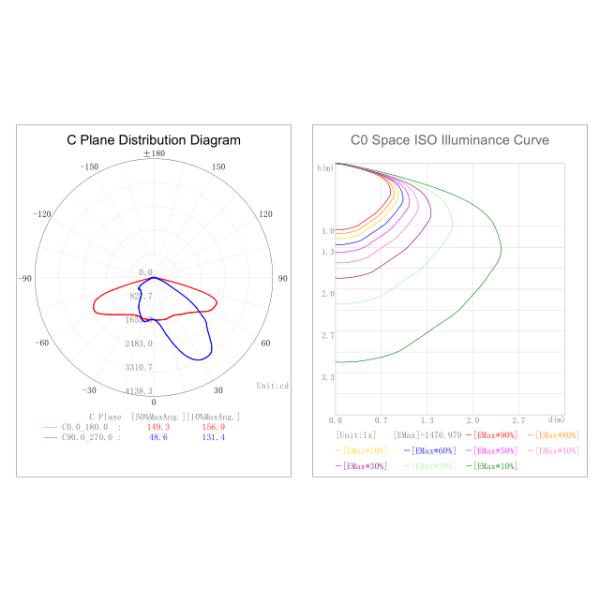

Product distribution curve :

​

JD has 25,000 m2 plant.150 workers.

JD dedicate itself to different kinds of luminaires: LED Street Light, LED Flood Light, LED Garden Light, Light Pole. Company equiped own Lab. Include: IES Testing,IP Testing, IK Testing, Work Temperature Testing. Equipment include Chip Mounter, Welding Machine, 1000T ,700T and 300T Die-casting Machines, Powder Coating Line. Company provides innovative, high quality and environment friendly luminaires to worldwide. Application include industrial, commercial, residential, hotel projects and municipal projects.

JD has experienced engineers offer strong technical support,bring creativity,insight and knowledge to provide the best and brightest lighting solutions. Company follows ISO 9001-2015, ISO14001, ISO18001 management system, attention to detail of every process include: design, engineering, tooling, manufacture, finishing, assembly, packing and shipping. HIGH QUALITY is embodied in every management and workers mind. Products have CE, ROHS, GS, Enec, CB certificate. Welcome to OEM, ODM.
