| Categories | High Temperature Casters |
|---|---|
| Place of Origin: | Suzhou, China (Mainland) |
| Brand Name: | Ecastor |
| Supply Ability: | 500000 Piece/Pieces per Month Heavy duty high temperature phenolic caster wheels |
| Packaging Details: | Inner Bag, Carton, Pallet |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Model Number: | 1215-150 |
| Certification: | ISO9001 |
| Product Name: | High Temperature Resistant Plate Rigid Caster |
| Load Capacity: | 300kg |
| Wheel Diameter: | 150 MM |
| Tread Width: | 50 MM |
| Plate Size: | 114x100mm |
| Hole Spacing: | 85x72mm |
| Tread Material: | High temperature Nylon |
| Mounting Type: | Plate Swivel |
1. Description:
In some industries, high temperature casters are essential. You will find applications of high-temperature casters in aerospace, baking, smoking rooms, autoclaves, medical environments, etc. Common high-temperature caster materials include high-temperature phenolic, cast iron, stainless steel, nylon, phenolic, epoxy and so on. Your application will determine which of these materials is the best.
Our high-temperature caster material is high-temperature nylon, and its maximum working temperature is 280 degrees Celsius. The brackets of the casters are made of high-strength steel. Has a high load-bearing capacity.
Rigid casters are casters that remain in one position. They will not rotate like a swivel caster will. Rigid casters give you great stability but do not give you the mobility advantages that swivel casters give you. For best results, most clients will use a combination of swivel and rigid casters to give them the most favorable mix of stability and maneuverability.
2. Specification

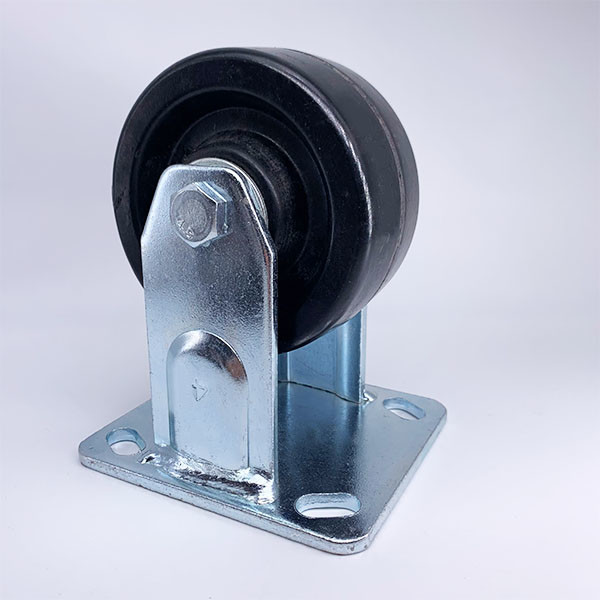

| Product Name | 6 Inch Nylon Wheel High Temperature Resistant Plate Rigid Caster |
| Wheel Diameter (mm) | 150 |
| Wheel Width (mm) | 50 |
| Load Capacity(kg) | 300 |
| Height (mm) | 190 |
| Plate Size (mm) | 114x100 |
| Hole Spacing (mm) | 85x72 |
| Hole Size (mm) | 10 |
| Tread Material | Hi Temp Nylon |
| Max Temperature | 280 Degrees Celsius |
| Mounting Type | Rigid Plate |
| Code | 1215-150 |
| Brake | No |

3, Other Size Products as Bellow:

|
