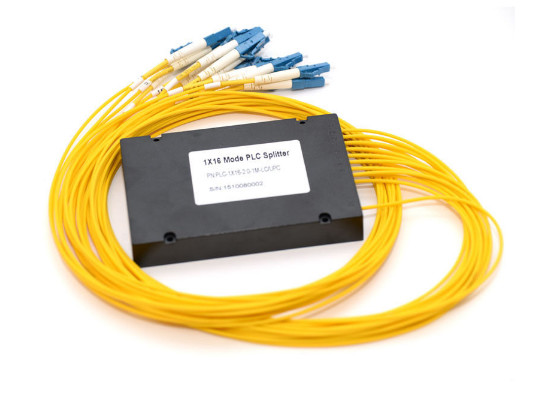

Lc / Upc Fiber Optic PLC Splitter 1 X 16 PVC Jacket 1260 - 1650nm Wavelength

Contact Now

Add to Cart

Company Info.

J&K Optotec Co.,Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

ABS Box Type Lc / Upc PLC Fiber Spliter 1x16 Optical Splitter PVC Jacket

wholesale abs box type 1X32 lc / upc plc fiber spliter

Features

Applications

Specifications

PLC Splitter 1× N, 2XN PLC Splitter

Parameters	1× 2	2× 2	1× 4	2× 4	1× 8	2× 8	1× 16	2× 16	1× 32	2× 32	1× 64	2× 64
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/ 4.0	4.0/ 4.2	7.1/ 7.3	7.6/ 7.6	10.2/ 10.5	11.0/ 11.2	13.5/ 13.7	14.4/ 14.6	16.5/ 16.9	17.5/ 17.9	20.5/ 21.0	21.0/ 21.5
Loss Uniformity (dB)	0.4	0.6	0.6	1.0	0.8	1.2	1.2	1.5	1.5	2.0	2.0	2.2
Return Loss (dB) (P/S Grade)	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.2	0.2	0.3	0.25	0.3	0.3	0.4	0.35	0.4
Directivity(dB)	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.4	0.3	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Temperature Stability (-40~85° C)(dB)	0.4	0.4	0.4	0.4	0.4	0.4	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature(° C)	-40~85
Storage Temperature(° C)	-40~85
Device Dimension (mm)(L× W× H)	40× 4× 4	40× 4× 4	50× 4× 4	40× 4× 4	50× 4× 4	50× 7× 4				60× 7× 4	60× 12× 4
