| Categories | Small Slew Drive |
|---|---|
| Brand Name: | HangTuo |
| Model Number: | SE9 |
| Certification: | CE, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | USD 280~504 / pc |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Delivery Time: | 15~45 days |
| Packaging Details: | plywood box |
| Gear ratio: | 61:1 |
| Efficiency: | 40% |
| Type: | Enclosed |
| Application: | Construction Machinery |
| OEM service: | Available |
| IP grade: | IP66 |
| Color: | As Requested |
| Material: | 42CrMo or 50Mn |
| Company Info. |
| Changzhou Hangtuo Mechanical Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

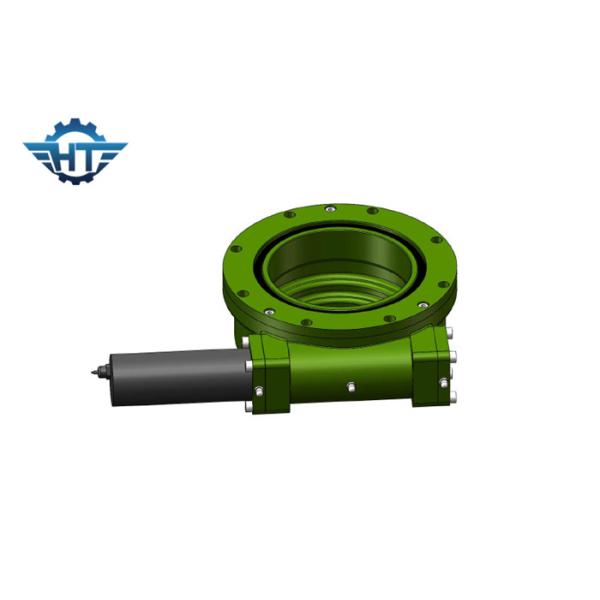

Solar Single SE9 Small Slew Drives With 24 VDC Geared Motor For Industrial And Solar Trackers
Description
Single axis SE9 slewing ring drive can be suitable for many applications and come with a variety of options, including:
1. Hydraulic motors
2. Electric motors
3. Pneumatic motors
4. Encoders
5. Brakes
6. Tracking precision to 0°
7. Open chassis
8. Enclosed chassis
SE Series Technical Data
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 1" | 31:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9 |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14 |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23 |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Enclosed SE9 Slewing Drives
Features
The enclosed design makes the SE Series resistant to damage from wind, rain and other harsh environments and ideal solution for matching the relative rotation of two objects.
Applications
The SE Series slewing drive can be used for both indoor and outdoor applications, including:
1. Truck Cranes
2. Satellite Dishes
3. Solar Trackers
4. Wind Turbines
5. Utility Equipment
6. Automotive Lifts
|
