Name: Mini Vertical Electric Hot Water Boilers Residential Dual Signal Control
Brand: WILFORD
Price: 1 USD

Mini Vertical Electric Hot Water Boilers Residential Dual Signal Control

Categories	Industrial Electric Hot Water Boiler
Brand Name:	WILFORD
Model Number:	LDR
Certification:	CE
Place of Origin:	China
MOQ:	1 stand
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	15 stand/stands per Month
Delivery Time:	15-20 working days
Packaging Details:	Packing in wooden box
Rated thermal power:	0.12-0.7MW
Rated Working pressure:	0.2-0.7Mpa
Staturated Water temperature:	95-120℃
Power *Group:	206-3620
Overall size:	The models are different
Weight:	330-1600kg

Contact Now

Add to Cart

Company Info.

Zhangjiagang Wilford Thermal Co.,Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Mini & Vertical LDR Electric Pressure Hot Water Boiler For Residential

Product introduction

Safe and reliable: Double control of pressure and temperature to ensure safe operation of the boiler under pressure.

Simple operation: advanced touch screen controller, digital detection system, not only can complete the operation by pressing the button, but also has automatic devices such as automatic alarm and timing control.

High efficiency: Fully automatic control mode, using series protection measures, work efficiency is very high.

High availability: This hot water boiler can be used for heating, and the control system will control the start and stop of the circulating pump according to the temperature of the furnace water.

Parameter

Type			LDR0.12	LDR0.17	LDR0.23	LDR0.35	LDR0.47	LDR0.53	LDR0.7
Project		Unit	LDR0.12	LDR0.17	LDR0.23	LDR0.35	LDR0.47	LDR0.53	LDR0.7
Rated thermal power Rated thermal power		MW	0.12	0.17	0.23	0.35	0.47	0.53	0.7
Rated working pressure		MPa	0.2/0.4/0.7	0.2/0.4/0.7	0.2/0.4/0.7	0.2/0.4/0.7	0.2/0.4/0.7	0.2/0.4/0.7	0.2/0.4/0.7
Staturated water temperature		℃	95/100/120	95/100/120	95/100/120	95/100/120	95/100/120	95/100/120	95/100/120
Input Power		KW	120	180	240	360	480	540	720
Input current		A	180	270	360	540	720	810	1080
Rated pressure		V	3N AC 50Hz 380V
Power×Group		KW×P	20×6	30×6	30×8	36×10	35×14	34×16	36×20
a Water outlet diameter		DN	50	50	50	65	80	80	100
b Water return diameter		DN	50	50	50	65	80	80	100
c Water inlet diameter		DN	15	15	15	25	25	25	25
d Blowoff valve diameter		DN	25	25	25	25	25	25	25
Overall size	L	mm	1050	1150	1280	1580	1680	1720	1750
	W	mm	950	950	1150	1350	1500	1600	1650
	H	mm	1900	2050	2100	2600	2950	2950	3000
	A	mm	-	-	-	1200	1200	1200	1200
	B	mm	-	-	-	500	500	600	600
	C	mm	-	-	-	1800	1800	1800	1800
Weight		kg	330/400	450/530	680/740	980/1080	1210/1380	1500/1680	1600/1780

Advantage

1 . Small pressure hot water boiler

2 . Water quality is clean and hygienic

3 . Step control heating group

4 . Less heat loss, energy saving

5 . Digital Prosecution System

6 . Controller is fully functional

7 . Safe and reliable operation

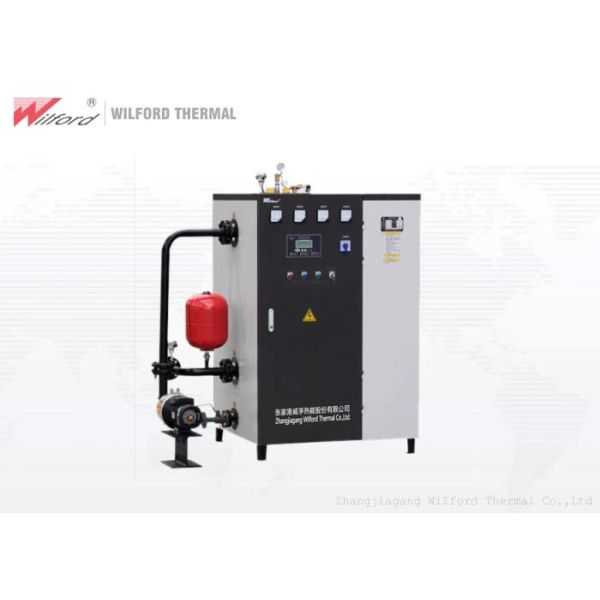

Product picture
