Modern Metal Aluminum Steel Roll Forming Machine 380 Volt 50Hz 3 Phases

Modern Metal Aluminum 380V 50Hz 3phases Floor Deck Roll Forming Machine

Metal Aluminum Floor Deck Roll Forming Machine's Advantages

High precision: Rollers manufactured from 45# steel, CNC lathes, Heat Treatment, hard Chrome Coated with thickness 0.04mm, surface with mirror treatment(for longer life and anti-rust);

Easy to operate: Operated with Schneider control systems, control the quantity and cutting length automatically;

High Efficiency: Able to produce 24 hours without downtime;

Quality after-sales service: Engineers available to service machinery overseas, Online support, Field maintenance, and repair service, Field installation, commissioning and training, etc.

Main of technical parameters

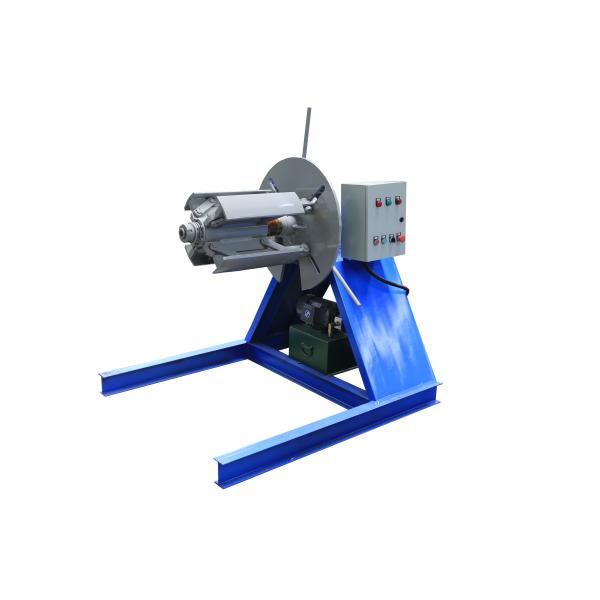

Hydraulic Decoiler

Max. feeding width: 1200mm, coil ID range 508mm±30mm

Capacity: Max. 5Ton

The hydraulic decoiler is a piece of special equipment for the unwinding of the pressing machine. The movement shaft passes through the sector plates with the inclined dovetail grooves on the three or four end faces. Each sector plate prevents the shaft from passing through a radial slide at the tail end. Tilting, but can achieve radial expansion and contraction.

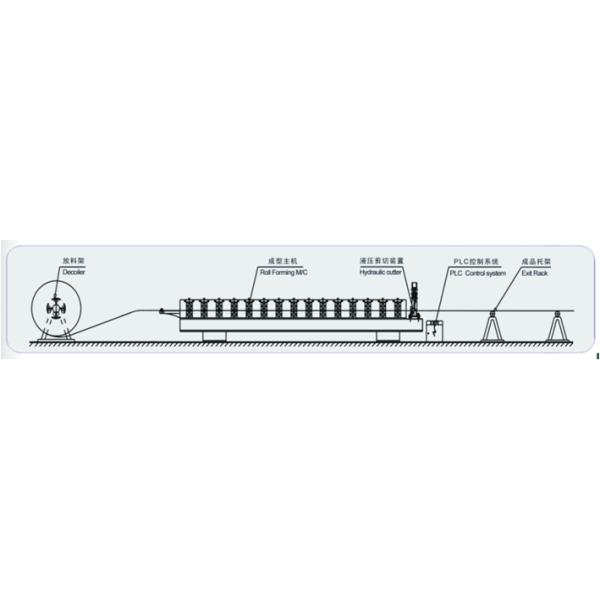

Production process sketch for reference

Decoiler—Rollforming—Hydraulic Cutting—PLC Control System—Exit Rack

BMS Machine was established in 1996, a member of BMS Group, which covers an area of more than 30000 square meters. With over 20 years of professional experience, we have been the TOP 3 manufacturer and exporter of HIGH-QUALITY cold roll forming machines in China. We are an ISO9001 approved company and have European CE certification (issued by SGS). We have the honour to serve some of the famous companies in the world such as TATA STEEL, BlueScope STEEL, LCP(a member of LYSAGHT Group of Companies), ROLL FORM GROUP LTD, etc.

We manufacture wide range products of metal sheet cold roll forming machines as follows: 1) for Metal Building Industry/PEB (Pre-Engineering Building): HAYES style quick change CZ purlin machine(including automatic and quick-change type C purlin machine and Z purlin machine), light gauge steel framing machine(LGSF, Howick and SCOTTSDALE style), roof panel forming machine, corrugated panel roll forming machine, curving machine, glazed tile roll forming machine, floor decking machine, ridge cap roll forming machine, cladding facade system forming machine, cut-to-length slitting line etc., as well as some hydraulic shearing machine, hydraulic folding machine for gutter and flashing, etc.
2) for Door and Window Industry: door frame forming machine, rolling shutter door machine, shutter door packing machine, garage door guide rail forming machine, etc.
3) for Metal Ceiling Industry: ceiling T grid machine(T-bar forming machine), ceiling furring system, drywall partition system, aluminium ceiling grilliato and strip production line, etc.
4) for Cable Tray Industry: unistrut channel forming machine, cable ladder forming machine, decorative cable channel forming machine.
5) for HVACR Industry: fire damper frame(VCD frame) forming machine CU//Z shape ventilation system frame forming machine, louvre forming machine, etc.
6) for Solar Industry: solar panel frame/solar PV structure forming machine
7) for Scaffold Industry: scaffold industry roll forming machine.
8) for Shelving and Storage Industry: shelve upright/plate roll forming production line, racking upright roll forming production line, boxed-beam roller former with connection machine.
9) for Customized Roll Forming Machines and Accessories.

We have great confidence in the quality and precision of our cold roll forming machines. Our main technology comes from Taiwan, but with China price.
Our cold roll forming machines have been exported to more than 60 countries and regions, including Taiwan, UK, France, Ireland, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, UAE, Iran, Kuwait, Yemen, India, Pakistan, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, Myanmar, Brunei, South Africa, Zimbabwe, Mozambique, Zambia, Congo, Cameroon, Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia, etc. Welcome customers from all over the world to cooperate with us on mutual benefits basis, OEM/ODM orders are also welcome. We know well the particular requirements for the customers of different countries and regions. And we have an outstanding export team who will take your requests. The design team will prepare you the perfect machines as per your specific requirements. Our experts and skilled workers complete the work with great precision.
