| Categories | Scrap Metal Baler |
|---|---|
| Brand Name: | JLNE |
| Model Number: | YDF |
| Certification: | CE ISO |
| Place of Origin: | Jiangsu,China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000sets/year |
| Delivery Time: | 25-35 working days |
| Packaging Details: | FCL |
| Product Name: | aluminum baler machine |
| Usage: | waste copper,aluminum |
| Application: | scrap metal recycling |
| Nominal Push Force: | 630-4000Kn |
| Bale dimension: | 200*200-650*650mm |
| Power: | 11-90KW |
| Voltage: | customized |
| Equipment weight: | 4.5-50t |

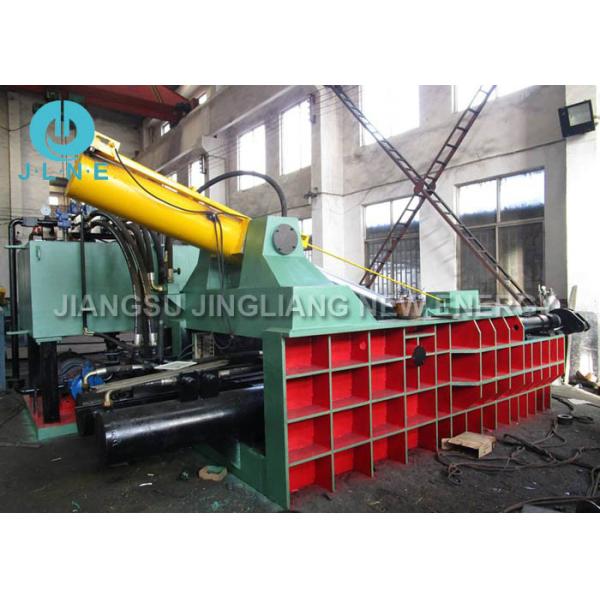

Automatic Scrap Metal Recycling Equipment Aluminium Can Baler
This hydraulic press machine can cold compresses waste automatic
shells ,waste buckets ,waste copper and
aluminum into rectangle lumps .The package is discharged from the
front and secondary compression is applied.
The operation efficiency is high and lump lengths are identical and
uniform .The hydraulic system applies an integrated

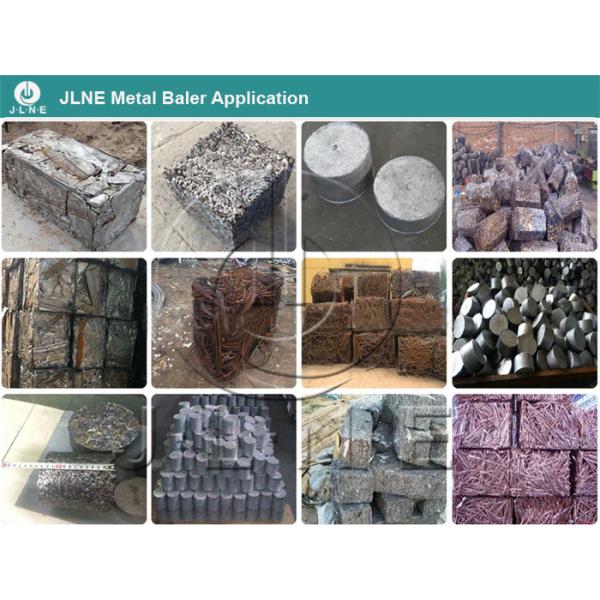

Waste Metal Recycling Machine Application:
hydraulic scrap aluminum recycle machine metal scrap baler CE is
suitable for the steel plants, recycling companies, ferrous &
non-ferrous metal smelting industry to compress metal scrap(steel
parings, waste steel, waste copper & aluminum, waste stainless
steel, scrap from discarded automobiles) into acceptable furnace
charges of cuboids, cylinders, octagons & other shapes, so as to
reduce the cost of transportation & smelting, to speed up furnace
charging.
Hydraulic horizontal scrap metal balers Features:
1) Hydraulic drive, compact design, great sealing.
2) Customized press box size and bale size.
3) Bale discharging ways include turn-out, side-push out and
forward-out.
4) Designed with quick unit that can improve work efficiency
substantially.
5) Both Manual valve operation and plc controlling operation type
are available
Technical Parameter of metal pressing machine:
| Model | Nominal pressure (kN) | Press box size (mm) | Bale size (mm) | Bale density (t/m3) | Output (T/8h) | Bale weight (kg) | Power (kw) | Weight (T) |
| YDF-63A | 630 | 1000×600×500 | 200×200 | ≥2.0 | 4~6 | 16~30 | 11 | 4.5 |
| YDF-100A | 1000 | 1000×600×500 | 200×200 | ≥2.0 | 8~12 | 16~30 | 11 | 5.5 |
| YDF-100A | 1000 | 1100×500×500 | 200×500 | ≥2.0 | 6~8 | 40~80 | 11 | 5.5 |
| YDF-130A | 1300 | 1200×700×550 | 250×250 | ≥2.0 | 8~12 | 30~45 | 15 | 6 |
| YDF-130B | 1300 | 1200×800×600 | 300×300 | ≥2.0 | 8~12 | 30~45 | 15 | 6.5 |
| YDF-135A | 1350 | 1400×600×600 | 250×600 | ≥2.0 | 10~16 | 70~90 | 18.5 | 6 |
| YDF-160A | 1600 | 1200×800×550 | 300×300 | ≥2.0 | 8~12 | 50~80 | 18.5 | 7.5 |
| YDF-160B | 1600 | 1600×800×800 | 350×350 | ≥2.0 | 14~18 | 80~140 | 18.5 | 12 |
| YDF-160C | 1600 | 1400×900×700 | 320×320 | ≥2.0 | 16~24 | 80~150 | 22 | 12 |
| YDF-160D | 1600 | 1600×1200×800 | 400×400 | ≥2.0 | 16~30 | 110~170 | 22 | 13.5 |
| YDF-160A | 1600 | 1200×800×550 | 300×300 | ≥2.0 | 10~16 | 70~125 | 22 | 12 |
| YDF-160B | 1600 | 1600×800×800 | 350×350 | ≥2.0 | 16~20 | 70~125 | 22 | 12 |
| YDF-200A | 2000 | 1600×1200×800 | 350×400 | ≥2.0 | 18~28 | 110~170 | 22 | 20 |
| YDF-200B | 2000 | 1800×1400×800 | 450×450 | ≥2.0 | 20~30 | 110~170 | 22 | 20 |
| YDF-200A | 2000 | 1600×1200×800 | 350×400 | ≥2.0 | 20~30 | 110~170 | 30 | 22 |
| YDF-250A | 2500 | 2000×1200×1000 | 450×450 | ≥2.0 | 20~32 | 180~370 | 30 | 20 |
| YDF-250B | 2500 | 2000×1400×900 | 500×500 | ≥2.0 | 20~36 | 180~370 | 30 | 20 |
| YDF-250C | 2500 | 2000×1750×1200 | 500×500 | ≥2.0 | 20~38 | 180~370 | 22×2 | 27 |
| YDF-250A | 2500 | 1600×1200×1000 | 450×450 | ≥2.0 | 28~38 | 160~330 | 30 | 22 |
| YDF-250B | 2500 | 2000×1400×900 | 500×500 | ≥2.0 | 28~38 | 180~370 | 30 | 22 |
| YDF-250C | 2500 | 2000×1750×1200 | 500×500 | ≥2.0 | 28~38 | 180~370 | 22×2 | 27 |
| YDF-315A | 3150 | 2000×1400×1200 | 500×500 | ≥2.0 | 35~40 | 220~360 | 45 | 35 |
| YDF-315B | 3150 | 2500×2000×1200 | 600×600 | ≥2.0 | 35~56 | 450~800 | 45 | 39 |
| YDF-400A | 4000 | 2500×1600×1200 | 600×600 | ≥2.0 | 40~70 | 400~750 | 45×2 | 45 |
| YDF-400B | 4000 | 2800×1800×1200 | 650×650 | ≥2.0 | 50~80 | 650~900 | 45×2 | 50 |
|
