| Categories | Process Compressor |
|---|---|
| Brand Name: | JINGXIN |
| Model Number: | JXGY-230 |
| Certification: | ISO,CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
| Delivery Time: | 60 days |
| Packaging Details: | Wooden box |
| Type: | Piston |
| Voltage: | 380 V |
| Dimension(l*w*h): | Vary |
| Warranty: | 1 year |
| Power source: | AC power |
| After-sales service provided: | Engineers available to service machinery overseas |
| Configuration: | customer made |

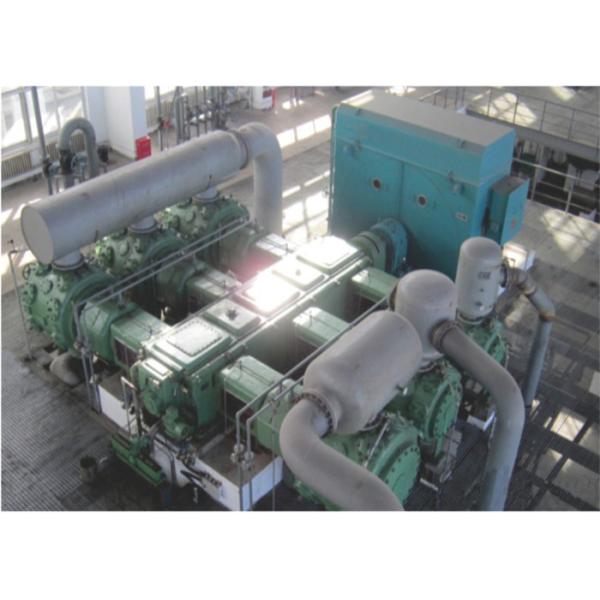

Good perfomance Coke oven gas compressor for Coal Chemical Industry
Application:
The coke oven gas compressor is used for coal chemical industry.
Features:
The coke oven gas compressor is four-stage compression, with six cylinders and six horizontal rows.
Crankshaft six turn each other into 60 ° even decorate, each group of the two columns of crank to 180 °, the runtime rotation inertia force, the basic achieve self-balancing first-order inertia force. Piston force distribution uniform, small vibration, smooth and reliable operation, wearing parts long service life.
Technical parameters:
| 1 | Stroke | 320 mm |
| 2 | Speed | 333 rpm |
| 3 | Piston rod dia. | 100 mm |
| 4 | Rated piston force | 320 KN |
|
