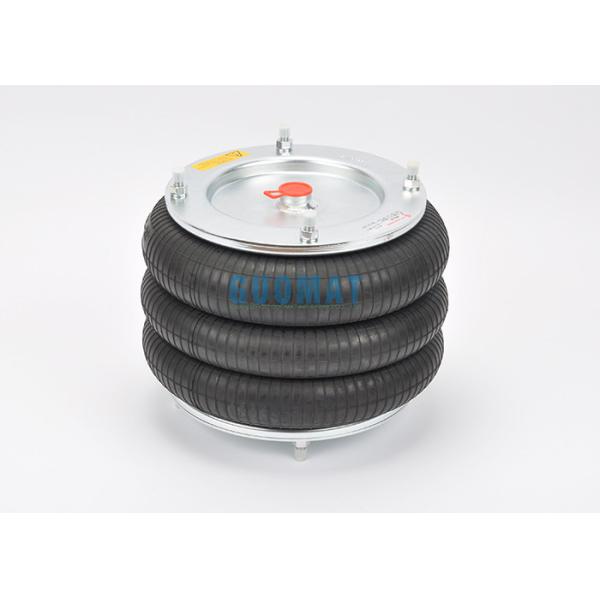

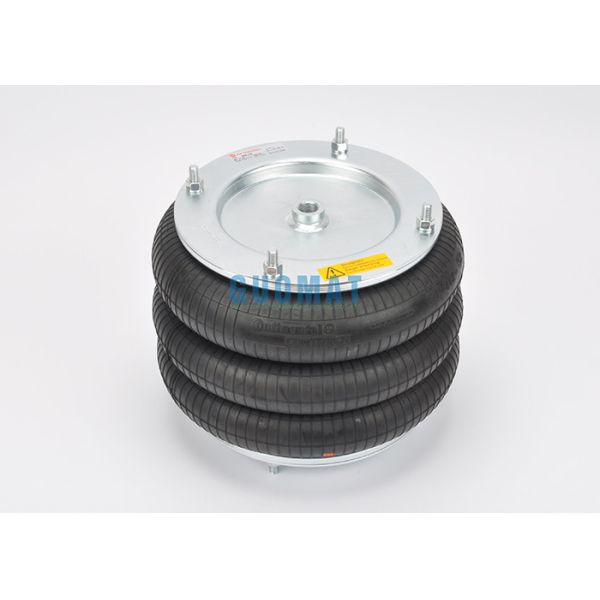

M/31123 Norgren Industrial Air Spring 12X3 Steel Rubber Bellows

M/31123 Norgren Industrial Air Spring 12X3 Steel Rubber Bellows

Description:

Norgren Imported M/31123 this kind of triple Convoluted Air Spring which is produced by Norgren. It can replace bellows Number 12"X3 ; M/31123 air spring not only use in truck and trailer,but also as Vibratory conveyors,such as Large drying machines,Centrifugal separators,Coordinate measuring tables and machinery and Commercial laundry machines.

OEM Cross reference:

Firestone W01-R58-4062

Specifications and Detail Technical Parameters:Style12" x3

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter (Width): 260 mm

Bottom Cover Plate Diameter (Width): 260 mm

Material top and bottom plate:Steel

❹Rubber Bellows

Stroke of Rubber Bellows:100mm-430m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Rubber material Standard up to 70°C natural rubber

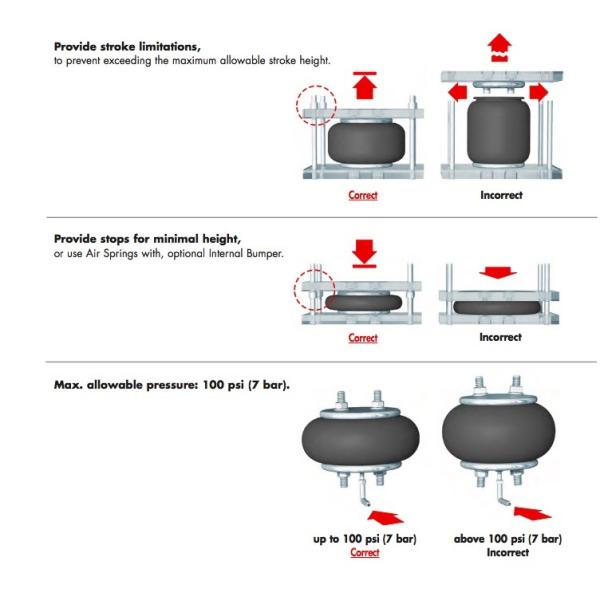

Installation and Operating Instructions:

Other models we import from Norgen:
