| Categories | Lifepo4 Battery Pack |
|---|---|
| Brand Name: | HKANON |
| Model Number: | HN-LFP 36V 430Ah |
| Certification: | CE, UL, RoHS, MSDS, UN38.3 |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1Pc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5,000Pcs/Month |
| Delivery Time: | 10 Days |
| Packaging Details: | 1PC/1 Wooden Box |
| Product name: | Electric Forklift Lithium Battery Power 15KWH 36V 430Ah 16KWH 48V 344Ah |
| Cell inside: | 12S5P- 3.2V 86Ah |
| Chemistry: | LiFePO4 |
| Application: | Electric forklift, AGV, UTV, Electric Stacker Cars, Electric Pallet Trucks, Road Vehicles |
| Ingress protection: | IP65 |
| BMS: | Included |
Electric Forklift Lithium Battery Power 15KWH 36V 430Ah 16KWH 48V 344Ah
Advantages
Warning
SPECIFICATIONS
| Battery Type | LiFePO4/Lithium Iron Phosphate |
| Pack Structure | Series and parallel connected |
| Rated Voltage | 36V |
| Rated Capacity | 430AH |
| Nominal Power | 15KWh |
| Charge Cut-off Voltage | Cell max. voltage 3.65 |
| Discharge Cut-off Voltage | Cell min. voltage 2.5V |
| Max. Continuous Charge Current | 0.5C |
| Max. Continuous Discharge Current | 1C |
| Charging Model | CC / CV |
| Dimension | Customized size |
| Communication | CAN bus/RS485/RS232(Optional) |
| Warranty | 15 Months |
| Application | Forklift, Electric Car, AGV, UTV, Electric Stacker Cars, Electric Pallet Trucks, Road Vehicles |
| Charge Temperature | 0℃~45℃ |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | Room Temperautre(Normally 25℃) |
| Cycle Life | More than 2500 times (100% DOD) |
| Built-in (16S 150A BMS) | Over-charging & charging protection. |
| Temperature control function. | |
| Short circuit protection. | |
| Balances the cells and ensures long cell life. |

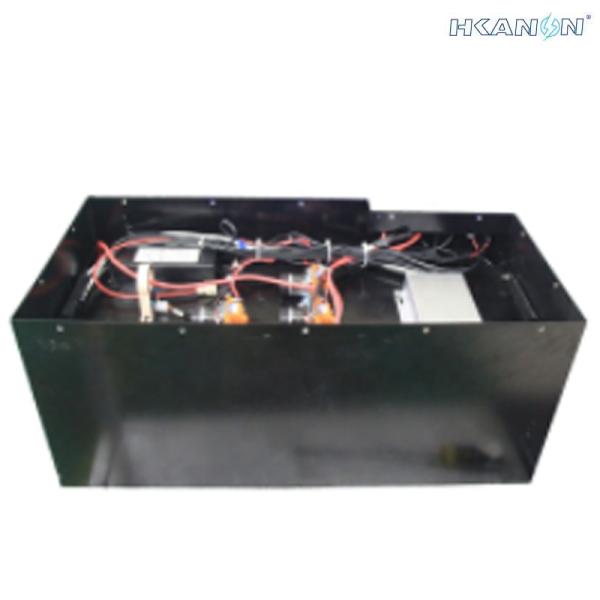

INTERIOR AND EXTERIOR GALLERY

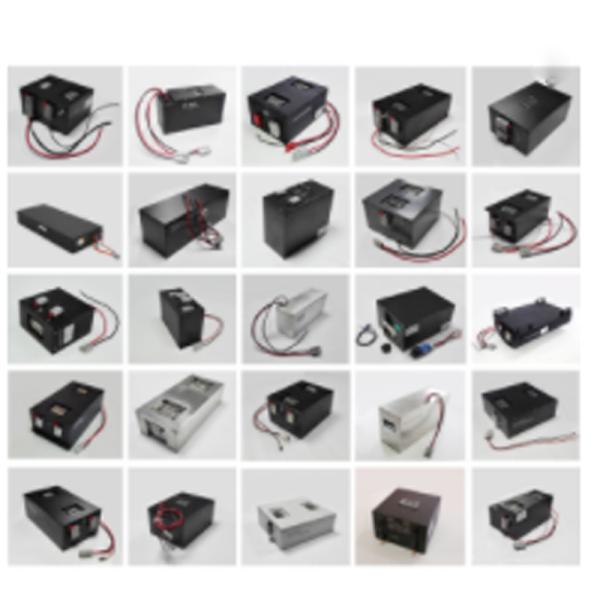

OTHER RELATED PRODUCT
| Battery type | Power(kwh) | Size(mm) | Weight(kg) | Voltage | Capacity |
| 12V 270Ah | 3.46 | 430*380*200 | 36 | 12.8 | 270 |
| 12V 350Ah | 4.48 | 530*380*200 | 45 | 12.8 | 350 |
| 12V 450Ah | 5.76 | 630*380*200 | 52 | 12.8 | 450 |
| 12V 280Ah | 3.58 | 380*380*290 | 36 | 12.8 | 280 |
| 12V 380Ah | 4.86 | 380*380*290 | 44 | 12.8 | 380 |
| 12V 480Ah | 6.14 | 480*380*290 | 52 | 12.8 | 480 |
| 12V 550Ah | 7.04 | 480*380*290 | 61 | 12.8 | 550 |
| 12V 650Ah | 8.32 | 580*380*290 | 69 | 12.8 | 650 |
| 12V 750Ah | 9.6 | 630*380*290 | 78 | 12.8 | 750 |
| 12V 850Ah | 10.88 | 730*380*290 | 86 | 12.8 | 850 |
| 12A 950Ah | 12.16 | 730*380*290 | 94 | 12.8 | 950 |
| 24V 190Ah | 4.86 | 380*380*290 | 44 | 25.6 | 190 |
| 24V 280Ah | 7.17 | 480*380*290 | 61 | 25.6 | 280 |
| 24V 380Ah | 9.73 | 630*380*290 | 78 | 25.6 | 380 |
| 24V 470Ah | 12.03 | 730*380*290 | 94 | 25.6 | 470 |
| 48V 95Ah | 4.86 | 380*380*290 | 44 | 51.2 | 95 |
| 48V 185Ah | 9.47 | 630*380*290 | 78 | 51.2 | 185 |
| 60V 95Ah | 6.08 | 480*380*290 | 52 | 64 | 95 |
| 60V 185Ah | 11.84 | 730*380*290 | 94 | 64 | 185 |
| 72V 95Ah | 7.3 | 480*380*290 | 61 | 76.8 | 95 |
|
