| Categories | Industrial Air Compressor |
|---|---|
| Brand Name: | JYS |
| Model Number: | HG700-18C,HG800-14C,HG800-14C |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | By email , CNY, USD |
| Supply Ability: | 800 UNITS PER MONTH |
| Delivery Time: | 25 Working days |
| Packaging Details: | Naked , Two or Three units in one 40' container |
| Payment Terms: | T/T, L/C, Western Union |
| Certification: | ISO9001, ISO14001 |
| Steel: | any colours customer's requirement |
| Warranty: | 1 year |
| Condition: | Brand New |
| Colour: | Customize |
| Product Name: | Air compressor |
| Quality: | Origanl |

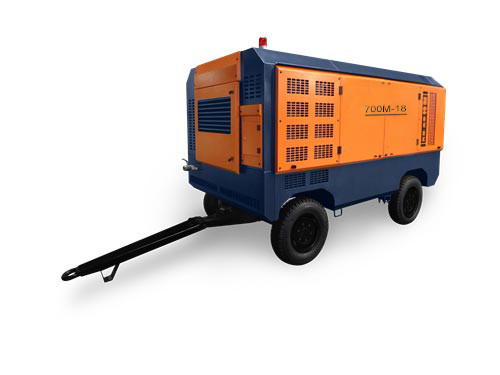

High Pressure Industrial Air Compressor , Construction Air Compressor
Main Specification
| Model | HG700-18C | HG700-18C (Suited to High altitude and Cold area) | HG800-14C | HG600-8C (Suited to High altitude and Cold area) | |
| Working pressure | Mpa | 1.8 | 1.8 | 1.4 | 1.4 |
| Air displacement | m³/min | 18 | 18 | 22.5 | 22.5 |
| Drive Method | Coupling Straight League,Diesel Engine Drive | Coupling Straight League,Diesel Engine Drive | Coupling Straight League,Diesel Engine Drive | Coupling Straight League,Diesel Engine Drive | |
| Volume of Tank | L | 189 | 189 | 189 | 189 |
| Diesel Engine | |||||
| Manufacturer | Dongfeng Cummins 6CTA8.3-C260 | Dongfeng Cummins 6CTA8.3-C260 | Dongfeng Cummins 6CTA8.3-C260 | Dongfeng Cummins 6CTA8.3-C260 | |
| No.of Cylinder | mm | 6 | 6 | 6 | 6 |
| Rated power | KW | 194 | 194 | 194 | 194 |
| Rated speed | rpm | 1900 | 1900 | 1900 | 1900 |
| Unit Dimension | mm | 3980×1980×2320 | 3980×1980×2320 | 3980×1980×2320 | 3980×1980×2320 |
| Unit N.W. | Kgs | 4500 | 4600 | 4500 | 4600 |
| Moving type | 4 wheels | 4 wheels | 4 wheels | 4 wheels | |
|
