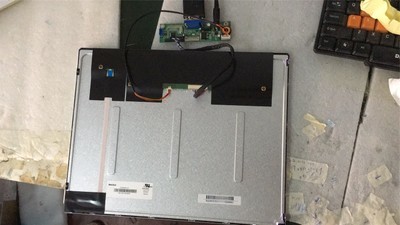

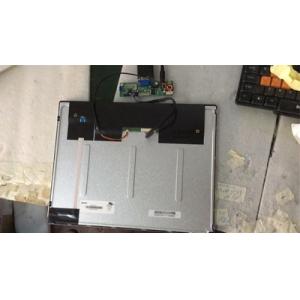

Innoux Industrial Panel Pc Touch Screen 15'' 500cd/m2 Brightness G150XNE-L01 L03

Manufacturer
Innolux
Model Name
G150XNE-L01
Screen Size
15.0 inch
Screen Type
LCM , a-Si TFT-LCD
Pixel Number
1024(RGB)×768 (XGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
304.128 × 228.096 (H×V)
Outline(mm)
326.5 × 253.5 × 9.6 (H×V×D)
Bezel Area(mm)
307.4 × 231.3 (H×V)
Treatment
Antiglare, Hard coating (3H)
Luminance
500 cd/m² (Typ.)
Contrast Ratio
2500 : 1 (Typ.) (TM)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Response
13/5 (Typ.)(Tr/Td) ms
Good View at
Symmetry
Work Mode
NPVA, Normally Black, Transmissive
Color Depth
262K/16.7M 72% (CIE1931)
Backlight
WLED , 70K hours , With LED Driver
Mass
0.97/1.00Kgs (Typ./Max.)
Used for

Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (1 ch, 6/8-bit) , Connector , 20 pins
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C
Innolux Corporation (hereafter called Innolux) G150XNE-L01 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 85°C . It's general features are summarized by einklcd in the following: High Color Gamut, Antiglare Surface, 6/8 bit Selectable, Wide Viewing Angle, Landscape type, Wide Temperature, White LED Backlight, Lamp life ≥ 70K hours, Normal Signal Interface Position, 180 Reverse , PSWG. Based on its features,einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2017, Now this model is in production. We inputted this model's specification on Aug 24 2016 for the first time, and the latest update on Apr 16 2019. If you want to embed G150XNE-L01 LCM in your future product, Einklcd strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail. The G150XNE-L01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

It's 500cd/m2 lcd MODEL for industrial field use.

All our LCD LED screen monitor module panel products will be full test one by one before sending .

Product Tags:

industrial panel pc touch screen

industrial computer monitor

Innoux Industrial Panel Pc Touch Screen 15'' 500cd/m2 Brightness G150XNE-L01 L03

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	FOCUS VISION TECHNOLOGY LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Industrial LCD Display
Brand Name:	INNOLUX
Model Number:	G150XNE-L01
Certification:	Rohs,CE,FCC
Place of Origin:	KOREA
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week
Delivery Time:	4-5 working day
Packaging Details:	Industrial packing
Quality:	Brand new Original
Package:	Original industrial packing
material:	glass oled
color:	16.7M colors
model:	WLED
style:	wide screen high resolution 800*600
brightness:	450cd
connector:	20pin
contrast ratio:	1500:1
working life:	70K hours
