| Categories | Carbide Milling Tools |
|---|---|
| Brand Name: | SUPAL |
| Place of Origin: | Changzhou,Jiangsu,China |
| MOQ: | 5PCS |
| Payment Terms: | T/T |
| Supply Ability: | 10000000PCS |
| Delivery Time: | 7-15Days |

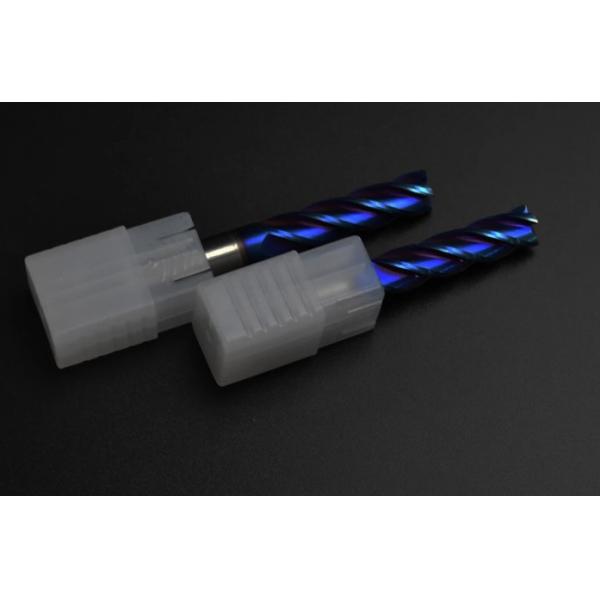

| Packaging Details: | 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs. |

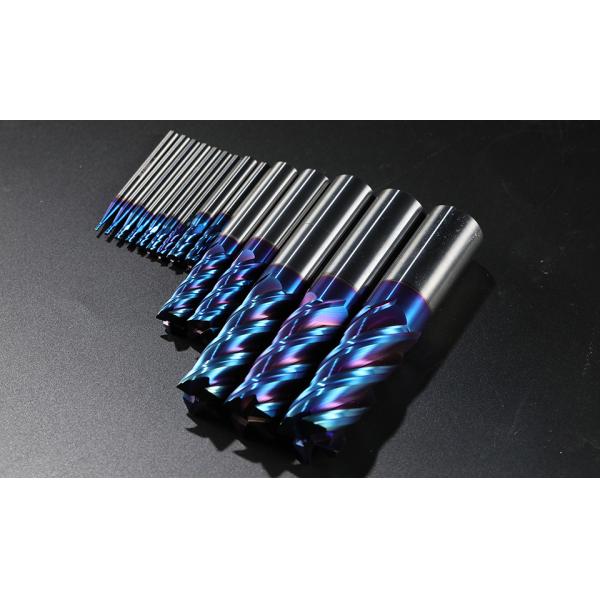

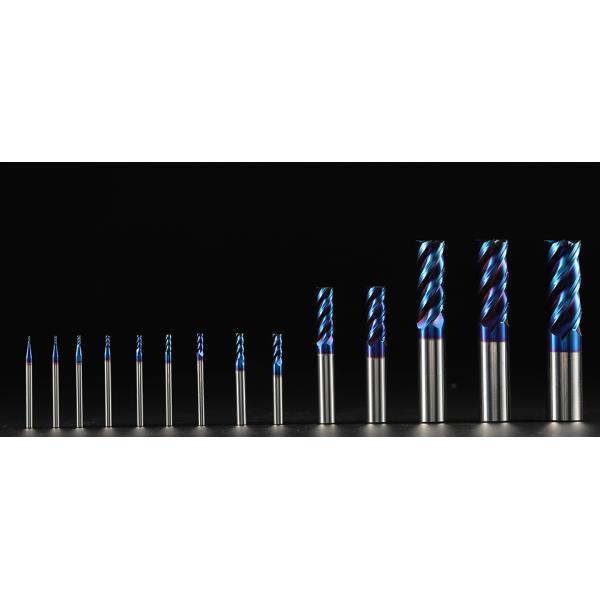

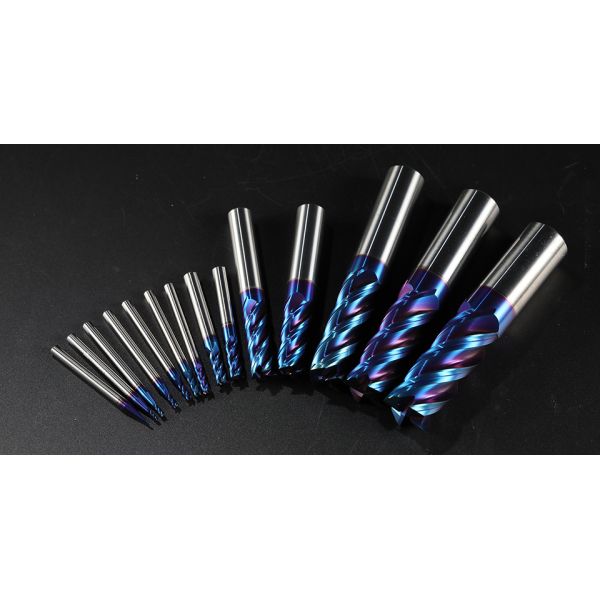

| Product Name: | End Mill |
| Material: | Tungsten Cobalt Alloy |
| Coating: | BLUE NANO |
| Shank: | Straight |
| Service: | OEM |
| Suitable for: | stainless steel,cast iron, hardened steel, steel |
| Price: | To be negotiated |
| Model Number: | OEM |
| Company Info. |
| Supal (Changzhou) Precision Tools Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
High Quality Carbide Rod
| HRC | Grade | Density g/cm3 | Hardness HRA | Co Content % | Grain Size um | Bending Strength N/mm2 |
| 45 HRC | YG10X | 14.5 | 91.5 | 10 | 0.8 | 2800 |
| 55 HRC | ZK30UF | 14.5 | 92.0 | 10 | 0.6 | 3000 |
| 65 HRC | GU25UF | 14.5 | 93.0 | 12 | 0.4 | 4000 |
Excellent Coating
Good coating can inprove tools life and production effiency, as well as slove the cutting problems.
| Coatings | Hardness HV | Thickness um | Friction Coefficient | Oxidation Temp | Color |
| AlTiN | 3500 | 2.5-3 | 0.3 | 900 | Black |
| TiAlN | 2800 | 2.5-3 | 0.3 | 900 | Violet |
| TiSiN | 3600 | 3 | 0.45 | 1000 | Copper |
| AlTiSiN | 400 | 3 | 0.4 | 1200 | Blue |
| TiN | 2500 | 2-3 | 0.5 | 600 | Gold |
Helix Angle:35 degree
Suitable Machine:Milling Machine, CNC processing center and so on.
Applications for:
Iron,cast Iron,stainless steel, alloy steel, carbon steel, mould
steel and tool steel
high speed processing engraved and cutting.
Advantages:
1.Imported Tungsten Carbide rod.
2.Using Import ANCA Machine high precision grinding, polish
processing.
3.Sharpen edge, big chips drain, wear resistance.
|
