| Categories | Outdoor LCD Digital Signage |
|---|---|
| Brand Name: | Maxbright |
| Model Number: | M320EDCP-i |
| Certification: | CE |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / month |
| Delivery Time: | 4~5 weeks |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Price: | Negotiable |
| Panel: | a-Si Active Matrix TFT-LCD |
| Resolution: | 1920 x 1080 |
| Brightness: | 2500 nits |
| Power Consumption: | 145W |
| Operating voltage: | 100 - 240 VAC 50/60Hz |
| Operating temperature: | -20C -- 50C |
| Touch Screen: | 10 Points Projected CAP Touch option |

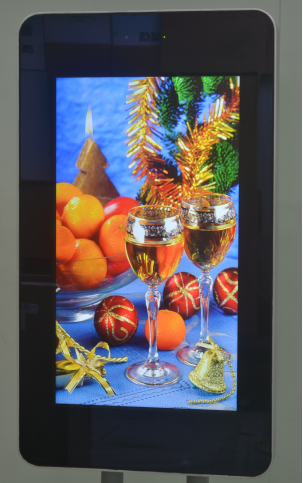

Maxbright 32" High Bright Outdoor LCD E-poster Model:M320EDCP-i
LED array backlight enhanced
Model:M320EDCP-i
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 9:16 in Portrait mode enabled
Wide Viewing Angles 178 deg. (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player or mini-PC for content playback
Waterproof IP54 enclosure option
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 392.85 x 698.4 mm portrait orientation |
| NATIVE RESOLUTION | 1080 x 1920 RGB |
| PIXEL PITCH | 0.36375(H) x 0.36375(V) mm |
| COLOR | 16.7 Million, 8 bits |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 10 msec typical |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288 Android OS ) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | 100 ~ 240VAC 50/60Hz |
| POWER CONSUMPTION | 110W for 2000 nits, 145W for 2500 nits |
| STANDBY MODE | 3 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
OPERATING (option) | Mini PC: D2550 Dual-core 1.86GHz, 2GB DDR3, 32-64GB SSD, 4 x USB ports, 1 x RJ45, 1 x HDMI, 2 x RS232, Windows OS |
DIMENSION WEIGHT | 1041(H) x 520(W) x 140(D)mm 33 Kg approx |
| Waterproof IP54 Enclosure | |
| COOLING | By cooling fans controlled by MCU |
| ENVIRONMENTAL | Operating Temperature -20-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
|
