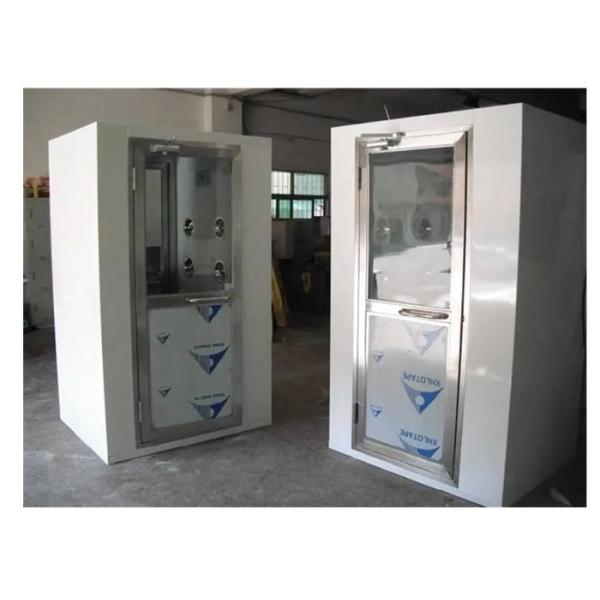

Powder Coated Steel Outside Air Shower Cabinet Anti - Static System
Optional parts:
1. Infrared sensor auto sliding door,
2. ULPA filter
3. Stainless steel or Galvanized
4. No base plate, it is easy for truck to pass
5. Yellow fluorescent lamp / UV lamp / Emergency switch
6. Anti-static system

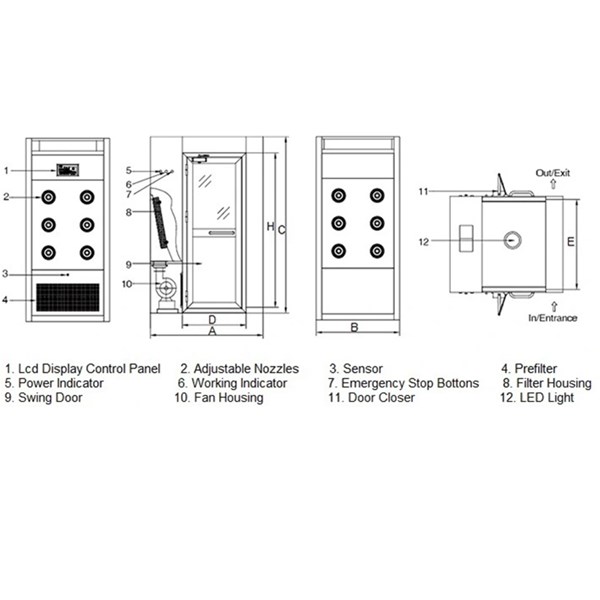

Design drawing

Parameter:
| KEL-AS1400P1 Series | ||||
| Model | KEL-AS1400P-1 | |||
| External size(mm) (WXDXH) | 1400x1000x2180 | |||
| Work zone (mm)(WXDXH) | 790x1930x1910 | |||
| Persons per cycle | 1-2 person | |||
| Air shower Duration | Factory set at 12 second (adjustable) | |||
| Material | Steel with white color epoxy power-coated or Stainless steel | |||
| Fan consumption | 0.75KWX1sets | |||
| Air flow of fan(m3/h) | 1300m3/h | |||
| Fan run (r/min) | 2800r/min | |||
| Nozzle in stain less steel | 36pcs | |||
| Wind speed(m/s) | > 22-27m/s | |||
| Noise level(dB) | <62dB | |||
| LED Fluorescent Lamp | 20wx3 | |||
HEPA Filter | Size(mm) | 630X630X69mm | ||
| Efficiency | 99.99%@0.3um | |||
| Air velocity | 1000(m3/h) | |||
| Resistance | <220pa | |||
Pre-filter | Size(mm) | 785x385x21 | ||
| Efficiency | 75% @ 5um | |||
| Resistance | <30 Pa | |||
| Electrical | Power supply | 380v/50Hz | ||
Other type air shower display

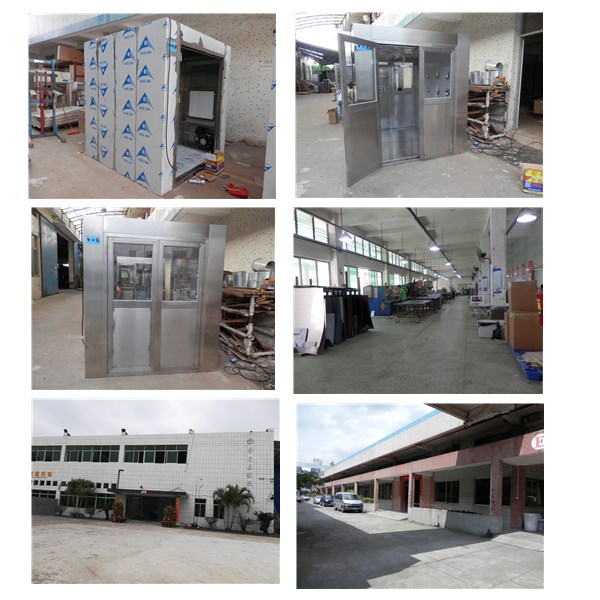

Our factory

|
