| Categories | Hydraulic Cable Tensioner |
|---|---|
| Brand Name: | Boyu |
| Model Number: | TY2x80-29 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets/month. |
| Delivery Time: | 15~25 days |
| Packaging Details: | Carton |
| Rated tension: | 2x80kN / 1x160kN |
| Max feeding speed: | 5km/h |
| Overall dimension (length*width*height): | 5520×2280×2850mm |
| Engine: | Cummins |
| Diesel: | 97kw(130hp) |
| Groove number: | 2x6 |
| Max reverse pulling force: | 2x40kN/1x80kN |
| Total weight: | 10000kg |
| Company Info. |
| Yixing Boyu Electric Power Machinery Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

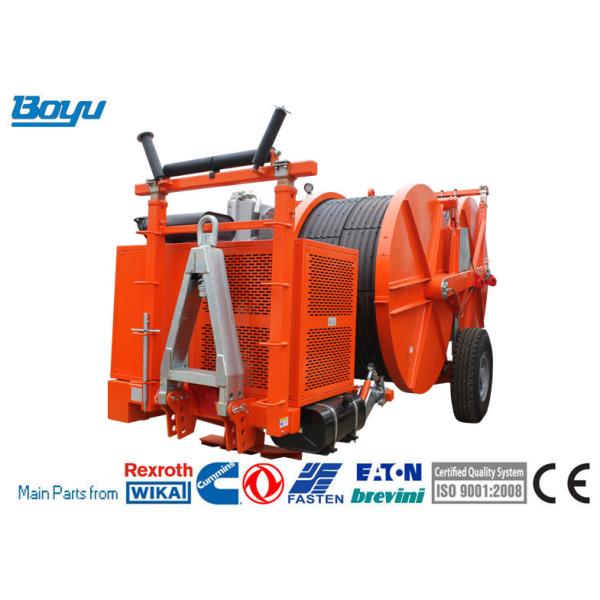

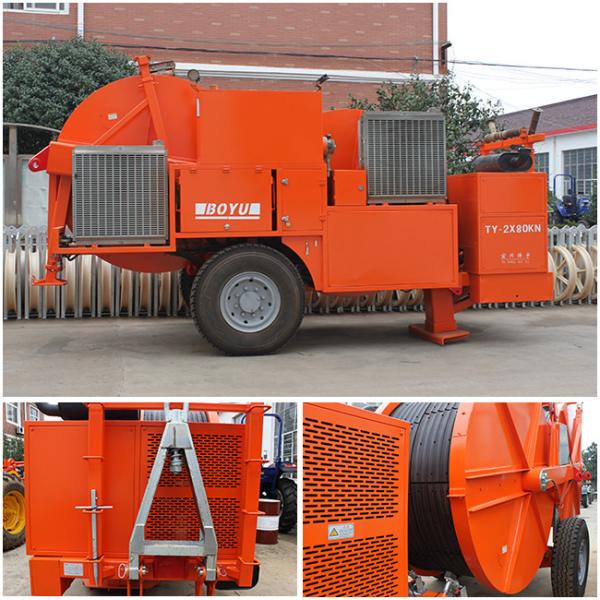

Transmission Line Equipment 2x80kN Cummins Hydraulic Cable Tensioner
| Model | Max intermittent tension | Max continuous tension | Speed at max tension | Max speed | Tension at max speed | Max reverse pulling force | Max reverse pulling speed | Diesel | Cooling system | Electrical system |
| kN | kN | km/h | km/h | kN | kN | km/h | kw(hp) | V | ||
| TY2X80 | 2x100/ 1x200 | 2x80/ 1x160 | 2.5 | 5 | 2x40/ 1x80 | 2x40/ 1x80 | 3 | 97(130) | Water | 24 |
| Model | Bull-wheel diameter | Max conductor diameter | Groove number | Total weight | Overall damension |
| mm | mm | kg | mm | ||
| TY2X80 | 1850 | 48.75 | 2x6 | 10000 | 5520*2280*2850 |
| Main configuration |
Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor:German Rexroth/French Leduc Speed reducer: German Rexroth Hydraulic meter: German Operating handle: German Rexroth |
| Hydraulic Transmission |
The machine can realize step less speed. The machine is provided with tension presetting system. |
| Additional Devices |
Lighting system for the trailer Trailer for towing at max speed of 30 km/h Digital speed and meter counter Air brake system for the trailer 2 hydraulic rope/conductor clamp (extra charge) Swivel guide rope roller |
| Configuration |
2 negative self-acting hydraulic brakes 2 hydraulic dynamometers Rigid axle for towing at max speed of 30km/h with mechanical parking brake Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor Grounding connection point Hydraulic oil cooling system 2 digital meter counters 2 digital speed meters Control instruments for hydraulic system and diesel engine |
