TY2x80 130hp Hydraulic Cable Tensioner Max Tension 2x100kN / 1x200kN

Categories Hydraulic Cable Tensioner
Brand Name: Boyu
Model Number: TY2x80-28
Certification: ISO9001
Place of Origin: China
MOQ: 1set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Delivery Time: 15~25 days
Packaging Details: Carton
Max tension: 2x100kN / 1x200kN
Bull-wheel diameter: 1850mm
Overall dimension (length*width*height): 5520×2280×2850mm
Rated tension: 2x80kN / 1x160kN
Diesel: 97kw(130hp)
Total weight: 10000kg
Groove number: 2x6
Engine: Cummins
Pull at max speed: 2x40kN/1x80kN
Max reverse pulling speed: 3km/h
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

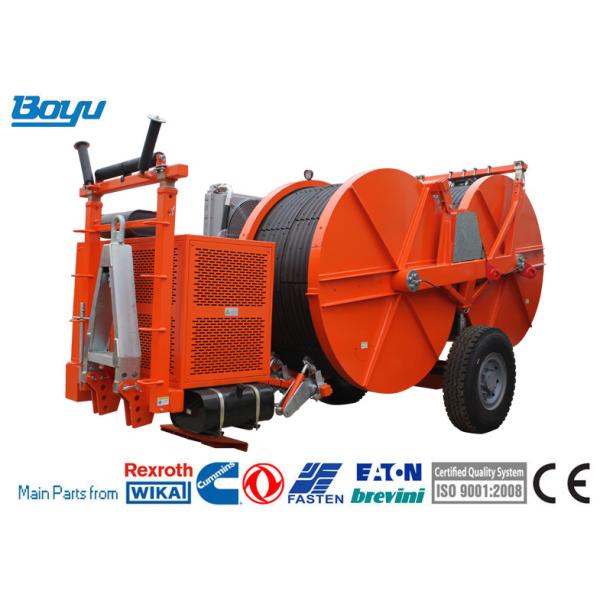

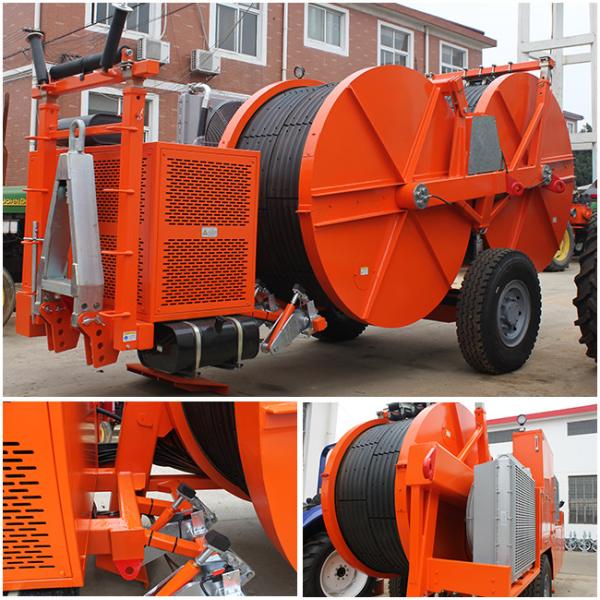

TY2x80 130hp Hydraulic Cable Tensioner Max Tension 2x100kN / 1x200kN

TY2x80 130hp Hydraulic Cable Tensioner Max Tension: 2x100kN / 1x200kN


The machine can tension the 1000mm2 double-beam conductor on a flat platform; in addition, it can be used to pull OPGW or ADSS cable and 500kV traction rope in various terrains.


Performance
Max tension2x100kN / 1x200kN
Rated tension2x80kN / 1x160kN
Speed at max tension2.5km/h
Max feeding speed5km/h
Pull at max speed2x40kN/1x80kN
Max reverse pulling force2x40kN/1x80kN
Max reverse pulling speed3km/h

Characteristics
Bull-wheel diameter1850mm
Groove number2x6
Max conductor diameter48.75mm
Total weight10000kg
Overall dimension (length*width*height)5520×2280×2850mm

Main configuration
EngineCummins
Hydraulic pumpGerman Rexroth/Dnish Danfoss
Main motorGerman Rexroth/French Leduc
Speed reducerGerman Rexroth
Hydraulic meterGerman
Operating handleGerman Rexroth

Engine
Diesel97kw(130hp)
Cooling systemwater
Electrical system24V


Company


Company Profile

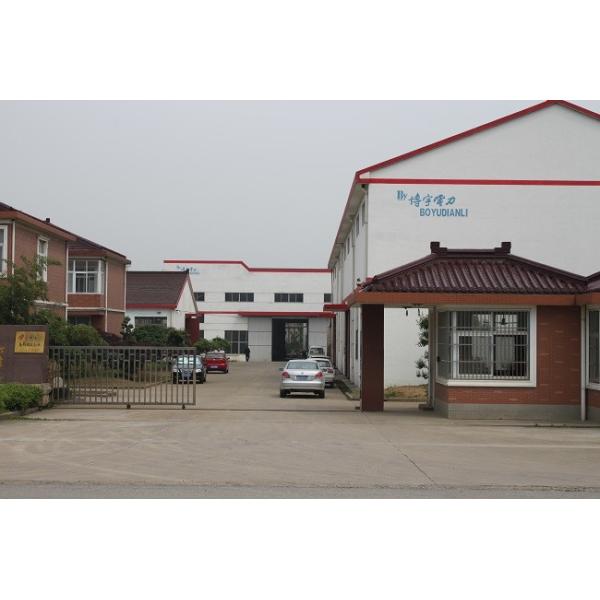

  • Our company is located in Yixing City, Jiangsu Province with a total area of ​​42,800 square meters and more than 160 employees.
  • Our company is a high-tech enterprise in Jiangsu Province and has six patents, two of which are invention patents.

Our company has formed four series of products:

  1. Power construction tools
  2. Non-metallic galvanized production equipment (obtained high-tech products)
  3. CNC machine tools
  4. Low-voltage unpowered electric arc furnace compensation system

Our company is a Chinese high-tech enterprise with over 27 years of production experience.

We are a company specializing in the research and development, manufacturing and sales of various transmission line engineering machinery such as hydraulic transmission systems.


History

Our company was established in 1994

Our company passed ISO9001 certification in 2001 and obtained AAA certificate at the same time

In 2006, it was awarded the contract and trustworthy enterprise in Wuxi City, and the famous brand product in Wuxi City in the same year

In 2007, won the title of Jiangsu Province High-tech Enterprise, and in the same year won the Jiangsu Province Famous Brand Product

In 2009, won a major achievement award in Wuxi City

In 2010, Boyu cooperated with the famous German Caesars company and founded the Boset brand

Our company obtained the National Science and Technology Innovation Program Project in 2010.

As of November 8, 2010, Boyu has successfully sold nearly 4,000 sets of pullers and tensioning equipment (excluding mobile ground grinding). Our products sell well in Sudan, Myanmar, India, Kenya, Pakistan, Mexico, Angola, Germany.
