12 FT X 5 FT Horse Corral Fencing

Categories	Farm Gates
Brand Name:	wiremeshfence.com/buy-farm_fence.html
Model Number:	1.6m 1.8m height 5 bar 6 bars
Certification:	ISO
Place of Origin:	American Design China Made
MOQ:	500 liner meter
Price:	8.88$ per liner meter
Payment Terms:	TT30% deposit balance 70% at sight of finished products
Supply Ability:	10000 liner meters
Delivery Time:	7 work days
Packaging Details:	All metal Pallets
Materials:	Q235 steel pre hot dipped galvanized steel pipe
Color:	Any Ral Color
Treatment:	Hot Dipped Glavanized,Powder Coated
Thickness:	1.2-2.5mm
Type:	Weld panels
Warranty:	5 -25 years depand on the treatment
Main Market:	Oceania Europea ,Middle East ,USA ,AU etc
Accessoires:	U and L lugs
Customized:	Available
Sample:	Free but pay freight cost
Square pipes:	4040mm1.6mm,50501.6m
Round Pipes:	32mm,42mmO.D,1.6mm thick
Oval Pipes:	30601.6mm,40801.6mm
Height:	1.6m high with 5 bars,1.8m
Name:	Heavy duty galvanized livestock panel ,cattle panel ,horse pane, ,sheep panels
Stanard Size:	1800x2100,1600mm x 2100mm

Contact Now

Add to Cart

Company Info.

Top Fencing Co.Limited

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

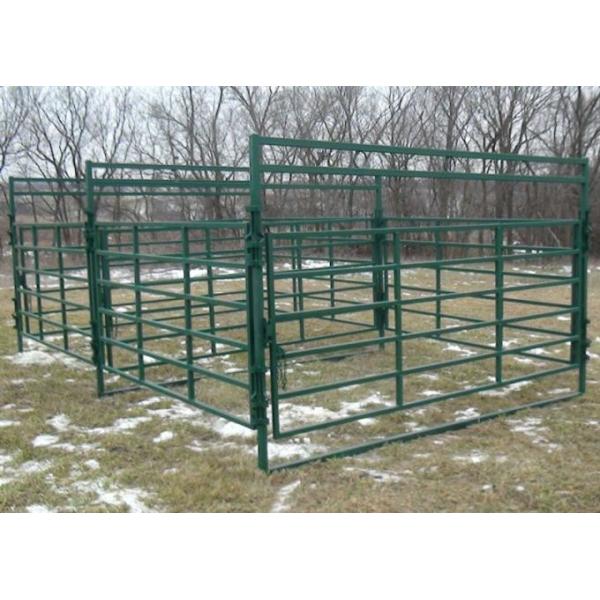

12 FT X 5 FT Horse Corral Fencing

Sliver Portable Horse Panels , Horse Corral Fencing Livestock Panel

Sturdy and durable cattle panels for cattle and other livestock. Ideal for use where portable cattle yards are required. Panels fit together easily using a drop pin through the lugs located on each post of the panel with welded top caps and foot plates, water and dust proof welded lugs for easy connection. The lugs are welded for all four sides, very durable and safe.

1. Specifications

Specification	Normal size
Height x Length	1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m 3.37*1.8m
pole style	Round pipe or square tube or oval tube
Pole specification	32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on
Package details	In steel pallet or in bulk

We can produce with your demand

2. Welded craft:

hot dip galvanized tubes—welded together—welding spots polishing—spots anti-rusting paint—spots silver paint

3. Surface treatment:

hot-dipped galvanized or paint, Powder Coated

4. Feature

Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.

Robust: interlocking system makes the fence very stable; quality steel and fully welding makes the panel more stronger; heavy duty and anti-broken; high zinc or PVC coated make the fence durable

Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations. And it benefits grassland protection.

4 Livestock Protection:

no sharp edge, very smooth welding spot finihment.

Cost-effective: give your corral years of service and minimal maintenance at a low in

5. Main markets:

Australia, European countries, Canada, America and Asia countries

6. Different style

Round Style

material	pre hot dipped galvanized steel pipe
finishing(zinc coating)	more than 15 microns
Height x Length	1800mm x 2100mm
vertical pipe	32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness
horizontal rails	32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails)
Welding	Fully welded post brackets
welds	bull bars are fully welded, each weld is protected with epoxy paint

Square Tube Style

material	pre hot dipped galvanized steel pipe
finishing(zinc coating)	mor than 15 microns
HeightxLength	1800mm x 2100mm
vertical pipe	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness
horizontal rails	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails)
Welding	Fully welded post brackets
welds	bull bars are fully welded, each weld is protected with epoxy paint

Oval Tube Style

material	pre hot dipped galvanized steel pipe
finishing(zinc coating)	mor than 15 microns
HeightxLength	1800mm x 2100mm
vertical pipe	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness
horizontal rails	30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails)
Welding	Fully welded post brackets
welds	bull bars are fully welded, each weld is protected with epoxy paint

Cattle Panel Gate

Height x Length:	2200mm x 2000mm
Frame:	Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps
Cattle Gate Horizontal rail	40 mm x 80 mm x 1.6mm thick x 6 oval rails
Finishing:	hot dipped galvanized ,zinc coating:more than 15 microns. Fully welded oval pipes, post &brackets ,heavy duty hinges

7. Application

Used in raising the animals,specially the cattle,the cow,the horse,the sheep etc.

8. Package of Cheap cattle panels

1>There is a layer of bubble wrap at the bottom of pallet, which can protect the last barrier;

2>There is a small piece of carton paper between each two barriers to prevent rubbing against each other;

3>There is also carton paper under the pacing belt;

4>Finally all barriers will be packed by several layers of plastic film.

As readily as our name spells “quality,” it also spells customer service.

When you’re ready to get started – whether the next step is picking up a few small components or replacement parts, ordering the materials for your do-it-yourself project or having a fencing estimator specialist come out to your property to help you determine a total solution – contact Quality Fence by filling out the form below or by making a call to or dropping by any one of our locations. We’ll make time for you. Let us know how we can help.

Sliver Portable Horse Panels , Horse Corral Fencing Livestock Panel
