| Categories | Anti Vandal Push Button Switch |
|---|---|
| Brand Name: | YUESHUN |
| Model Number: | JS19H-10/S |
| Certification: | CE RoHS |
| Place of Origin: | Wenzhou, China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T to our company account or by paypal |
| Supply Ability: | 5000Pcs/Day |
| Delivery Time: | 3-7 work days |
| Packaging Details: | The product is packed in foam box to prevent damage during transportation. |
| Max. Current: | 2A |
| Max. Voltage: | 36V DC |
| Color: | Silver |
| Body Material: | Stainless Steel |
| Head shape: | High Round Head |
| Warranty Period: | One Year |
Stainless Steel 19mm High head Anti Vandal Push Button Switch Normal Open Momentary Car switch
Product Description
- Anti-vandal Push Button Switch can be applied to car motorcycle
modificine ,electric equipment ,appliance,machine , home Lamps and
so on, whcich is durable and decent.
- Momentary Waterproof push button switches are made of 304
Stainless Steelor Nickel Plated Brass.
- Momentary Switch: Press the button switch, it works ; Press the
button again ,switch stops working .
Product Specification
| Model Number | JS19H-10/S |
| Mounting Hole | 19mm |
| Max.Switch Rating | Ith:2A Ui:36V DC |
| Material | Body Material: Stainless Steel |
| Button Material: Stainless Steel | |
| Contact Material: Silver Alloy | |
| Base Material: PBT | |
| The Front Shape | High Round Head |
| Terminal Type | Screw Termlmal |
| Switch Operation | Momentary |
| Contact Configuration | Normal Open or Normal Closed all can be customized. |
| Mounting panel thickness | 1-6 mm |
| Operation Distance | About 1.5 mm |
| Protection Level | IP65 |
| Operating Temp | -20℃~+55℃ |
| Mechanical life: | More than1,000,000 cycles |
| Electrical life: | More than 200,000 cycles |

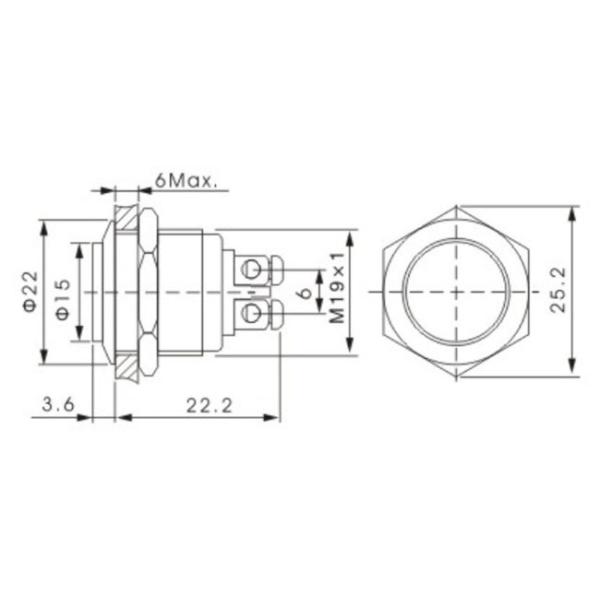

Size

|
