| Categories | Aluminum Push Button Switch |
|---|---|
| Brand Name: | YUESHUN |
| Model Number: | LA16 Series |
| Certification: | CE RoHS |
| Place of Origin: | Wenzhou, China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T to our company account or by paypal |
| Supply Ability: | 5000Pcs/Day |
| Delivery Time: | 3-7 work days |
| Packaging Details: | The product is packed in foam box to prevent damage during transportation. |
| Color: | Black |
| Body Material: | Aluminum |
| Head shape: | Flat High Round |
| Warranty Period: | Two Year |
| Mounting panel thickness: | 1-10 mm |
| Operation Distance: | About 2.8 mm |

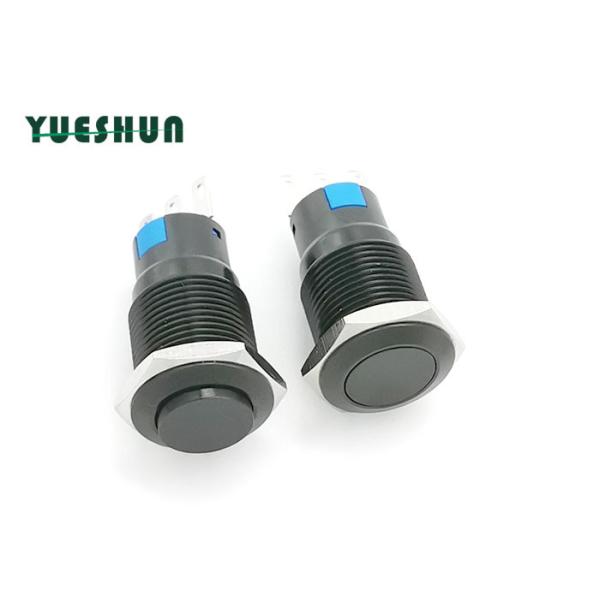

16mm Round head Latching Aluminum Push Button Switch 5Pin Termlmal Momentary Metal button switch
Product Description
- Waterproof pushbutton switches is made of anti-vandal metal, such as stainless steel, Gold plated brass , Zn-Al Alloy, Nickel Plated Brass.-
- LED color: 1. Red 2. Green 3. Blue 4. Yellow 5. Orange 6. White
7. Purple
- LED voltage: 3V 6V 12V 24V 36V 110V 220V 380V for choose
Product Specification
| Model Number | LA16 Series |
| Mounting Hole | 16MM |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material: Aluminum |
| Button Material: Aluminum | |
| Contact Material: Silver Alloy | |
| Base Material: PBT | |
| The Front Shape | Flat High Round Head |
| Terminal Type | Pin Termlmal |
| Switch Operation | Momentary or Latching |
| Contact Configuration | 1NO 1NC or 2NO 2NC |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 2.8 mm |
| Protection Level | IP67 |
| Operating Temp | -20℃~+55℃ |
|
