| Categories | Small Scissor Lift |
|---|---|
| Brand Name: | JESH |
| Model Number: | SS0407ES |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1Unit |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, D/P, D/A |
| Supply Ability: | 4000 Units per month |
| Delivery Time: | 45 days |
| Packaging Details: | Regular factory packing |
| Color: | Green |
| Working Height: | 6.8m |
| Platform Height: | 3.8m |
| width: | 0.74m |
| Length: | 1.84m |
| Capacity: | 240KG |
| Material: | High impact steel structure |
| Weight: | 880KG |
| Overall Dimensions: | 1.84x0.76x2.07m |
| Warranty: | 2 Years |
| Control methods: | 2 Controls (top+ground) |
| Battery: | 24V/225Ah |
| OEM: | OEM support |
Electric mini cissor lift specs:
| Model | SS0407ES |
| Dimentions | |
| Working height | 5.9m |
| Platform height | 3.9m |
| Max drive height | 3.9m |
| Platform length | 1.29m |
| Platform length-extended | 1.89m |
| Platform extendable | 0.6m |
| Platform width | 0.7m |
| Height-rails unfolded | 1.97m |
| Height-rails folded | 1.97m |
| Width | 0.76m |
| Length | 1.44m |
| Wheelbase | 1.05m |
| Ground clearance-Pothole protection lay down) | 2cm |
| Ground clearance | 6cm |
| Productivity | |
| Platform capacity | 240kg |
| Capacity on extension | 100kg |
| Drive speed | 4km/h |
| Gradeability | 25% |
| Raise/lower speed | 20/24sec |
| Turning radius(inside/outside) | 0.4/1.55m |
| Tire | 9x 4cm |
| Engine | Optional( Perkins,Koher,Deutz,Commins,Yanmar) |
| Battery | 24V DC |
| Hydraulic oil tank capacity | 8L |
| Weight | 880kg |
Electric mini Scissor Lift Main Specification:
Shipping method:
The machine can be load into a 40' full container ,per 40' container can be load 12 units.
Also can be choose by lcl shipment if one unit of electric mini scissor lift only .
Warranty:
2 years for the whole machine and 5 years for the main structure.

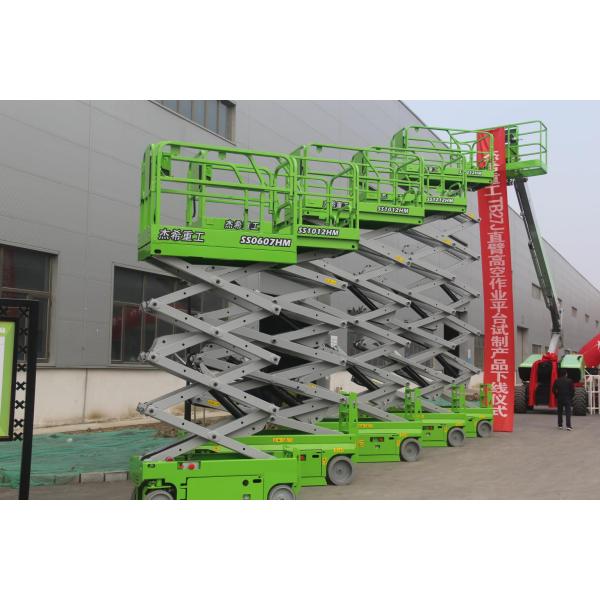

Manufacturer pictures；
|
