| Categories | Small Scissor Lift |
|---|---|
| Brand Name: | JESH |
| Model Number: | SS0607EM |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1Unit |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, D/P, D/A |
| Supply Ability: | 4000 Units per month |
| Delivery Time: | 45 days |
| Packaging Details: | Regular factory packing |
| Color: | Green |
| Working Height: | 5.8m |
| Platform Height: | 3.8m |
| width: | 0.74m |
| Length: | 1.84m |
| Capacity: | 240KG |
| Weight: | 880kg |
| Material: | High-duty Steel Structure |
| Control methods: | 2 Controls (top+ground) |
| Platform Size: | 2.53x0.74m |
| Overall Dimensions: | 1.84x0.76x2.07m |

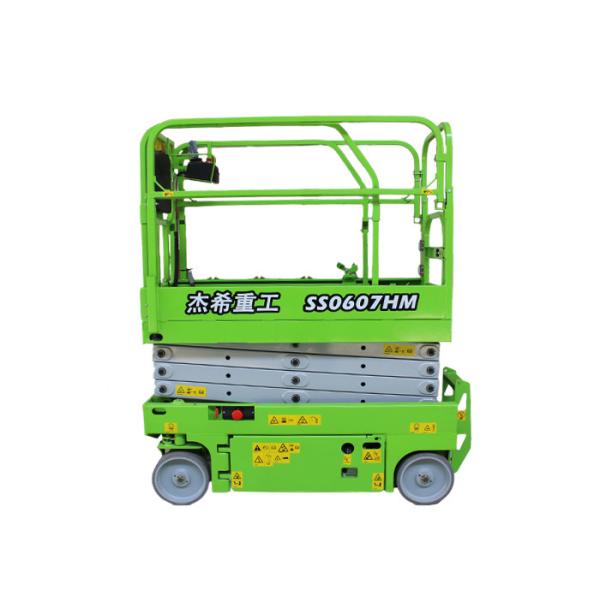

Self-propelled scissor lift covers working height from 6m-15m , which is suitable for indoor or outdoor use on solid flat ground.
The product is compact in structure and flexible to operate. Equipped with perfect security sensor, it delivers lower noise, superb operability, which is ideal for narrow working conditions requesting higher flexibility. To strenthen design, high strength steel is used for key structures,
Small electric scissor lift specs:
| Model | SS0407ES |
| Dimentions | |
| Working height | 5.9m |
| Platform height | 3.9m |
| Max drive height | 3.9m |
| Platform length | 1.29m |
| Platform length-extended | 1.89m |
| Platform extendable | 0.6m |
| Platform width | 0.7m |
| Height-rails unfolded | 1.97m |
| Height-rails folded | 1.97m |
| Width | 0.76m |
| Length | 1.44m |
| Wheelbase | 1.05m |
| Ground clearance-Pothole protection lay down) | 2cm |
| Ground clearance | 6cm |
| Productivity | |
| Platform capacity | 240kg |
| Capacity on extension | 100kg |
| Drive speed | 4km/h |
| Gradeability | 25% |
| Raise/lower speed | 20/24sec |
| Turning radius(inside/outside) | 0.4/1.55m |
| Tire | 9x 4cm |
| Engine | Optional( Perkins,Koher,Deutz,Commins,Yanmar) |
| Battery | 24V DC |
| Hydraulic oil tank capacity | 8L |
| Weight | 880kg |
Our factory view:
|
