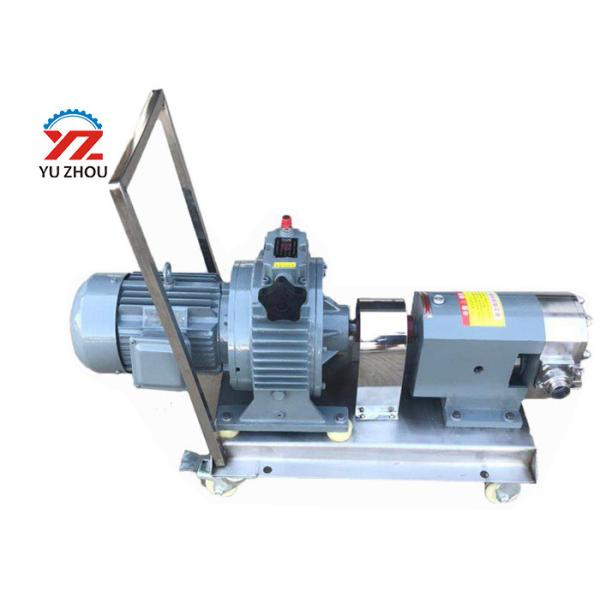

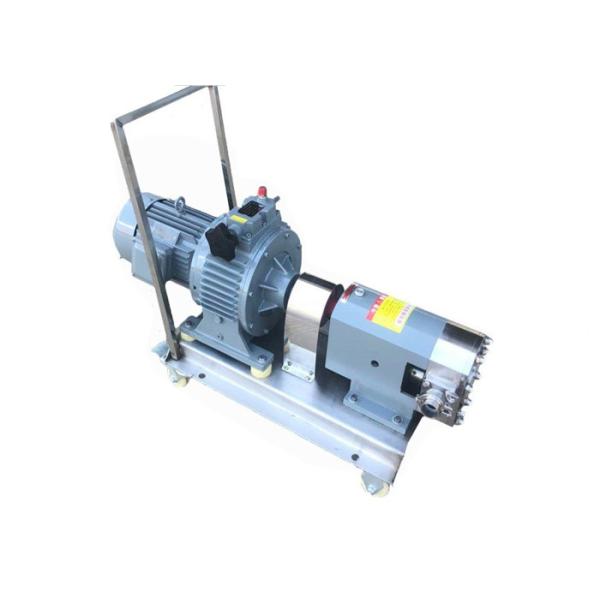

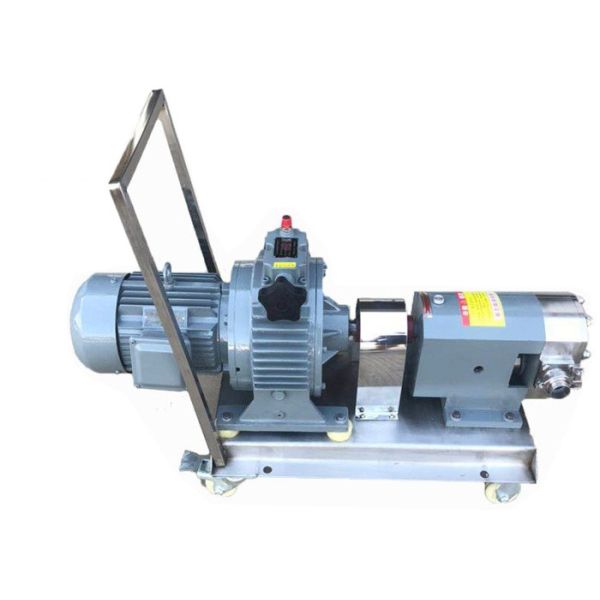

Movable Stainless Steel Lobe Pump , Sanitary Positive Displacement Pump

3RP series movable rotary lobe pump with mobile cart positive displacement sanitary pump

Brief introduction

3RP rotor lobe pumps are rotary positive displacement pumps, developed after decades of research and design. The manufacture engineering and accuracy has come up to advanced world level.

The twin-rotor lobe pumps are produced according to the following manufacturer standards: Foodstuffs, chemicals, Regular, Oil-fields and Special-type. The core parts and sealing device of the products are made of different materials and seal methods according to different properties of material and technological processes.

Application scope

Consumer Chemicals:

AES, LAS, AOS, K12, glycerol, Sorbonne, fatty alcohol, bathing shampoo, skin cream, shampoo, detergent liquid, toothpaste soap, washing powder slurry, etc.

Refined Chemicals:

Dyestuff's, pigments, all kinds of pulp, chemical additives, adhesives, silicone oil, leather oil, a variety of colloidal materials, etc.

Foods:

Chocolate, concentrated milk, yoghourt, honey, syrup, cane sugar, tomato juice, concentrated juice, jam, ice cream, milk, yeast slurry, meat slurry, jelly, condiment, less, soybean protein, flour slurry, etc.

Paper Making:

Polyacrylamide, calcium carbonate, starch paste, carboxyl starch paste, rosin, rosin size, paper pulp, filling, dry strength agent, wet strength agent, sizing agent, filter agent, anti foaming agent, spreading, water treatment chemicals, etc.

Chemical Fiber:

Pectic slurry, PVA, vinylon slurry, acrylic slurry, ammonia slurry, polyester slice, terylene, polypropylene fiber, rayon, functional fiber, etc.

Pharmaceuticals:

Ointments, extract-um, me-dine latex, pill paste, syrup, health-care products, drugs, etc.

Coating:

Paint, dope, printing ink, insulating paint, resin, additives and assistants, organic solvent, etc.

Performance scope of 3RP sanitary pump

1.Capacity:0.3-4.3m3/h;

2.Pressure:0.4-1.0mpa;

3.Motor power:0.55-22kw;

4.Temperature:-20-150degree;

5.Viscosity: 30cst ~ 1.0×105cst;

6.Speed:200-500rpm;

7.Material:stainless steel 304/316

Construction

3RP series Rotary Lobe Pump sanitary pump stainless steel pump is mainly composed of rotary lobe, shaft seal, Gear box. A pair of synchronous driving gear drive rotary lobe to deliver medium. The shaft seal can be designed with packing seal or mechanical seal according to specific working condition. The pump uses high strength, spiral gears and heavy load bearing in order to ensure the pump for long time.

You need not disassemble gearbox but adjust rotary lobe clearance because of special assembling way.

The material of “o” seal ring is the silicone rubber. To corrosive medium, PTFE is adopted.
