Home > Heat Exchanger >

Water Cooled Industrial Heat Exchanger In Nuclear Power Plant Oil And Gas Industry

Categories Industrial Heat Exchanger
Place of Origin: Jiangsu, China
Certification: CE,ISO,SGS,TUV,DNV certificate
Supply Ability: 20 Set/Sets per Month Water cooled shell and tube condenser tube heat exchanger
Packaging Details: Water cooled shell and tube condenser tube heat exchanger: good packed by plastic wrap in container
MOQ: >=1 Sets
Price: $1,000.00
Brand Name: Stord
Delivery Time: 3-4 months
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Liquid Flow Rate: max 50m3
Maximum Working Pressure: 10Mpa
Weight: As per design
Warranty: 2 Years
After-sales Service Provided: Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Applicable Industries: All industry
Condition: New
Structure: Tube Heat Exchanger
Voltage: 220/380/440V
Dimension(L*W*H): As per design
Gasket material: PTFE,Silision,FKM
Frame material: Stainless Steel/ Carbon Steel
Structure of heat exchanger: Tube structure
Application: Cooling,heat transfer
Diameter of heating pipe: 19mm - 325mm
Design pressure: Less than 10Mpa
Heat exchanging area: Up to6000 square meters
Port: Shanghai
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

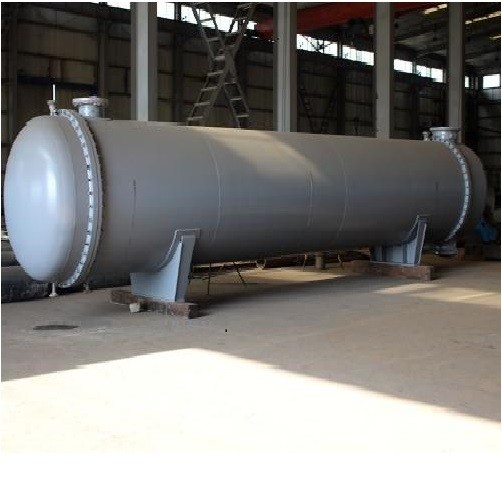

Water Cooled Industrial Heat Exchanger In Nuclear Power Plant Oil And Gas Industry

Product Description

Tube heat exchanger is the feature product in our company, of which the structure design, manufacturing and application are unique. Spiral tube type, arc tube and baffle plate type tubular exchanger are independent R&D products in the company, featuring advanced technology in the world, widely used in industries particularly in petrifaction, electricity and metallurgy.

Heat exchanger, also called heat transfer machine, is the equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.

The type of heat exchanger that our company can provides: Spiral-plate heat exchanger, corrugated tube heat exchanger, threaded pipe heat exchanger, plate heat exchanger, spiral baffle plate heat exchanger, double-tube plate heat exchanger, fin tubular heat exchanger, float-head heat exchanger, U-tube heat exchanger, stacked heat exchanger, and decompose type heat exchanger etc.

Heat exchange area and pressure can be customized according to customers' requirements. The tube heat exchangers which include U type, float-head type, corrugated tube type.


Main Features

1) Material: stainless steel and/or carbon steel, manganese steel, copper and titanium etc

2) Heat exchanger area: 1 - 500sqm

3) Shape: fixed pipe plate, floating head, U-type pipe

4) Structure: single channel, double channel and multi-channel

5) Used for evaporating, heating, condensing, cooling process

6) Various specifications available according to customer's requirements.

Technical Parameter
Main technical parameters of our tube heat exchanger
Maximun design pressureno more than 10 Mpa
Maximum design temp850"C
Maximum shell diameter4600mm
Maximum area of heat exchanger for single facility6000mF
Tube specification19~325mm
Tube length1000~16000mm
MaterialCarbon steel, stainless steel 304, 316 L, 2205, 904 L; titanium,copper, nickel and hastelloy
