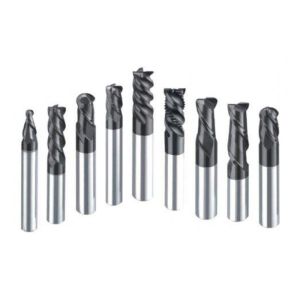

Professional HRC60 Tungsten Carbide End Mill For Processing Carbon Steel

Tungsten Carbide Ball Mill is a kind of cutter whose blade is similar to ball head, which is used for milling various curved surface and circular groove. Ball nose mill can use for small surface changes, small concave area less, relatively flat area more rough milling, and it can also mill die steel, cast iron, carbon steel, alloy steel, tool steel, general iron, belonging to the end mill.The ball head knife can work normally in high temperature environment.

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

Specification

HRC60 Tungsten carbide end mill

Blade diameter from 1mm-20mm, helix angle 35°, hardness 62, suitable for high speed; Features: micro-particle cemented carbide material, WC=87.5%, CO=12.5%, TRC>5000N/m2, particle size: 0.3- 0.4um, can process carbon steel, alloy steel,Stainess steel

2 flute long shank ball carbide end mill

4 flute long shank ball carbide end mill

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.

Zhuzhou Jintai Cemented Carbide Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city, Hunan Province. The company has more than 20 years’ experience in manufacture, design and sale of various kinds of carbide products.

Our main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc

The company has passed ISO 9001: 2008 quality system, possess advanced production equipment, complete testing instrument, strong R&D center and QC team.

With excellent quality, strong technical support, and good after-sales service, JINTAI Carbide brand products are sold to more than 50 countries in the world, including Europe, USA, Southeast Asia, Middle-East, South America, etc.

The company is dedicated to “Quality and Customer are first, “. JINTAI Carbide is growing up with the World’s carbide technology, to meet the demand of our customers from all over the world.
