| Brand Name: | Shitan |
| Model Number: | XY-1 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD3200-6800/set |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 20000 sets/ year |
| Delivery Time: | 7 days |
| Packaging Details: | no packing |
| Size: | 5M3 |

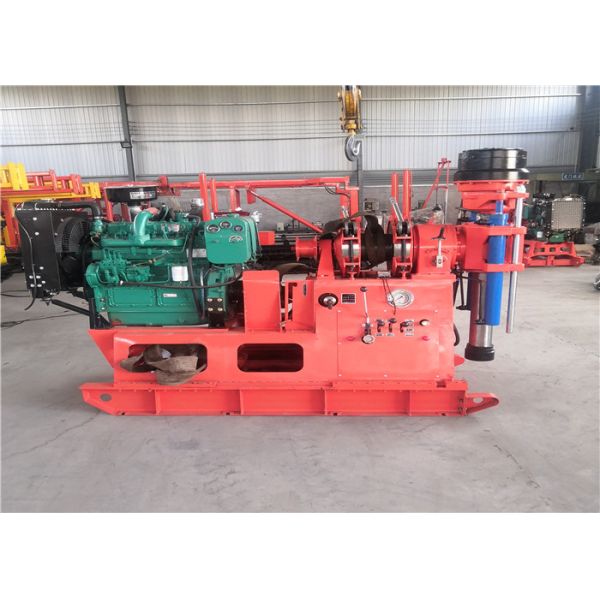

| Name: | 200M Track Minning Core Drilling Rig Machine |
| Color: | Red/yellow/customized |
| Application: | drilling core/ water well |
| Company Info. |
| Jinzhou City Shitan Machinery Equipment CO. LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Application
1.Construction drilling of the projects e.g. prospection,
geotechnical investigation, railway, road, port, bridge, water
conservancy and hydropower, tunnel, well, industrial and civil
construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
XY-1 specifications | ||||
Drilling Capacity | Drilling Diameter(mm) | 300 | 76 | 46 |
Drilling depth(m) | 25 | 135 | 175 | |
Drill pipe diameter | 42 | |||
Turnplate | Revolving speed | 48 100 200 350 650 (R/Min) | ||
MAX torque | 2000Nm | |||
Feed stroke | 400mm | |||
Pump | Rated speed | 2500 r/min | ||
Rated pressure | 20Mpa | |||
Max pressure | 25Mpa | |||

|
