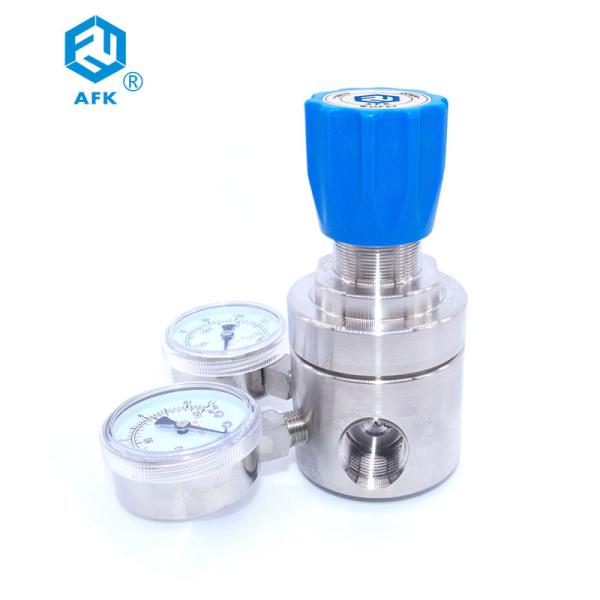

Panel Mounted High Pressure Nitrogen Gas Regulator 500/3000 Psi Inlet Pressure

Stailess Steel Panel Mounted High Pressure Nitrogen Gas Regulator

Specification

R12 series stainless steel pressure reducers, single-stage diaphragm construction, stainless steel diaphragm pressure transmission,

stable output pressure, applied to medium flow gas system.

Design Features

Single-stage pressure-reducing structure
Metal-to-metal diaphragm seal
Body thread: in and out of air interface ,1/2'' NPT(F)
pressure gauge, safety valve connection: 1/4'' NPT(F)
Filter net installed internally
Panel and wall mounting available

Typical Applications

Laboratory
Gas Purge System
Corrosive Gas and Special gas
Gas Bus-bar
Testing Equipment

Product Show

Detail Image

Ordering information

R12	L	B	D	F	G	02	00	P
Item	Body Materia	Body Hole	Inlet pressure	Outlet pressure	Pressure gauge	Inlet size	Outlet size	mark
R12	L:316	A	D:3000psi	G:0~250psig	G:MPa gauge	02:3/8”NPT(F)	02:3/8”NPT(F)	P:Panel mointing
	B:Brass	B	F:500psi	H::0~125psig	G:MPa gauge	03:3/8”NPT(M)	03:3/8”NPT(M)	R:With relief valve
		D		I::0~100psig	P:Psig/bar gauge	04:1/2”NPT(F)	04:1/2”NPT(F)
		G		K::0~50psig	P:Psig/bar gauge	05:1/2”NPT(M)	05:1/2”NPT(M)
		J		L::0~25psig	W:No gauge	12:3/8”OD	12:3/8”OD
		M				13:1/2”OD	13:1/2”OD
						Other type is available	Other type is available

Our Company

Delivery

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: No, we not offer the sample for free charge and also not pay the cost of freight.

Q: What is your payment ?
A: T/T , PayPal , Western Union
