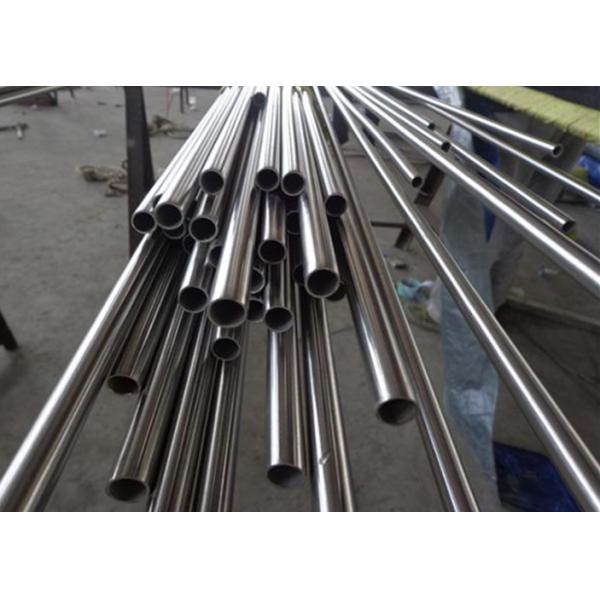

UNS S40500 Ferritic Stainless Steel Tube High Hardness Corrosion Resistance

ASME SA268 TP405 UNS S40500 Ferritic Stainless Steel Pipes & Tube

Ferritic Stainless Steel – Grade 405 (UNS S40500)

Stainless steels are known as high-alloy steels. These steels are available in four groups that include martensitic, austenitic, ferritic and precipitation-hardened steels. These groups are formed based on the crystalline structure of stainless steels.

Stainless steels contain larger amounts of chromium in comparison with other steels and thus have good corrosion resistance. Most of the stainless steels contain about 10% of chromium.

The chromium content in grade 405 stainless steel is 12%. The following datasheet provides an overview of grade 405 stainless steel.

Chemical Composition

The chemical composition of grade 405 stainless steel is outlined in the following table.

Typical Manufacturing Specifications:

ASTM A268

ASME SA268

Used for parts requiring a combination of good strength and toughness, plus reasonable corrosion resistance. Typical applications are: Bolts, Bushings, Fasteners, Gas Turbine Parts, Mine Equipment, Pump Parts, Petrochemical Equipment, Steam Turbine Parts, Studs, Valve Parts etc.

Material magnetic in all conditions.

405 - UNS S40500:

AISI Type 405 is a martensitic stainless steel that provides high strength and hardness with moderate corrosion resistance. A wide range of properties can be developed with different heat treatments, with ultimate tensile strengths ranging from 500 to 1400 MPa. It is magnetic in both the annealed and hardened conditions. High carbon content results in the formation of chromium carbide compounds, providing excellent wear resistance and edge retention when hardened. Additionally, this grade provides excellent high temperature oxidation and scaling resistance, yet is economical due to the low alloy content. Thermal conductivity is improved and thermal expansion reduced relative to austentic stainless grades.

Physical Properties:

• Melting Point: 2729°F / 1495°C
• Density: 0.276 lb/in3 / 7.65 g/cm3
• Specific Graivy: 7.65
• Modulus of Elasticity in Tension: 29 X 106 psi / 200 GPa

Mechanical Properties:

• Temper: Annealed
• Tensile Strength Minimum (psi): 65,000
• Yield Strength Minimum 0.2% offset (psi): 30,000
• % Elongation in 2” Minimum: 20%
• Hardness: Rockwell B80

• Temper: Hardened + 350°F
• Tensile Strength Minimum (psi): 205,000
• Yield Strength Minimum 2% offset (psi): 185,000
• % Elongation in 2": 8%
• Hardness: Rockwell C40

Composition:

• Carbon: 0.08 - 0.15
• Manganese: 1.00
• Phosphorus: 0.040
• Sulfur: 0.030
• Silicon: 1.00
• Chromium: 11.50-13.50
• Iron: Balance
• All values are maximum values unless otherwise specified. Values derived from applicable AMS and ASTM specifications.

Quality Assurance:

Spezilla's seamless bright annealed stainless steel tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

ASTM A268 Tp410 tube composition:

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
