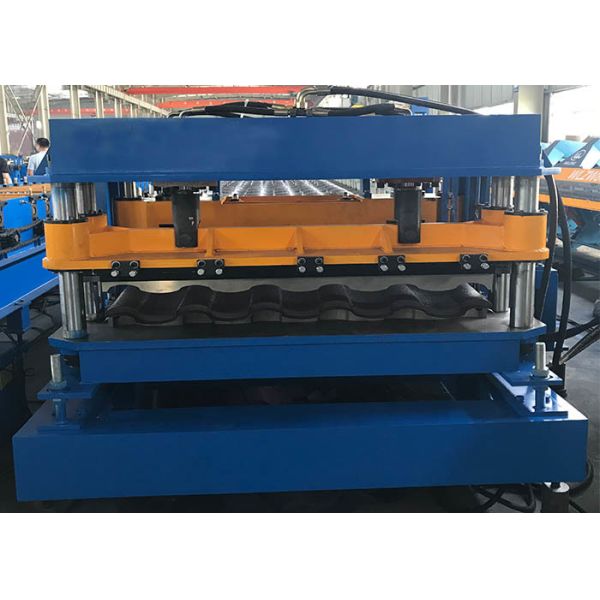

Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine

0.3 - 0.7 mm PLC control corrugated roof tile making roll forming machine

Machine specifications:

Machine compositions:

Detailed information:

The whole production line is controlled by PCL program. Operators can select a preset program to run the whole line automatically by using touch screen. The methods of operation include automatic control, manual control, separate operation and emergency stop.

Yield stress:230-300Mpa

Forming rollers:45# steel, 12 forming stations

Cutting device:Cr12

Main motor power:5.5kw

Hydraulic station motor power (KW):5.5kw

Voltage:380V 3 phase 60Hz or as you require

Controlling system:PLC control system:Mitsubishi(according to your requirements)

Operation:Touch screen and button

Wuxi YBT machinery Equipment co.,ltd established in 1998, specialize in cold roll forming machine and auto-producing line.To put customers'benefit on the first, we know our success comes from customers'success and support. We run this mind through the whole process from the design and develpment to after-sale service in order to help our customer increase efficiency and reduce cost to strengthen competitive forces. Our designer and sales will listen to your reuirement to help you receive an ideal equipment.Our company has perfect internte for after-sale service which can support the after-sales so that you can get the satisfied equipment, ensure you receive our considerate service by solving all the problems which appeared during using the machine.
We will do the best machine to my all customers!

Our roll forming machine series:

1. Steel Silo Roll Forming Machine

2. Shutter Door Roll Forming Machine

3. C Z Purlin Roll Forming Machine

4. PU Sandwich Panel Line

5. Rock Wool Production Line

6. Highway Guardrail Roll Forming Machine

7. Floor Deck Roll Forming Machine

8. Cable Tray Roll Forming Machine

9. Steel Roll Forming Machine

10. Metal Slitting Line

11. Cut To Length Line Machine

12. Downpipe Roll Forming Machine

13. H Beam Welding Line

We will try do our best for make best quality machine!
