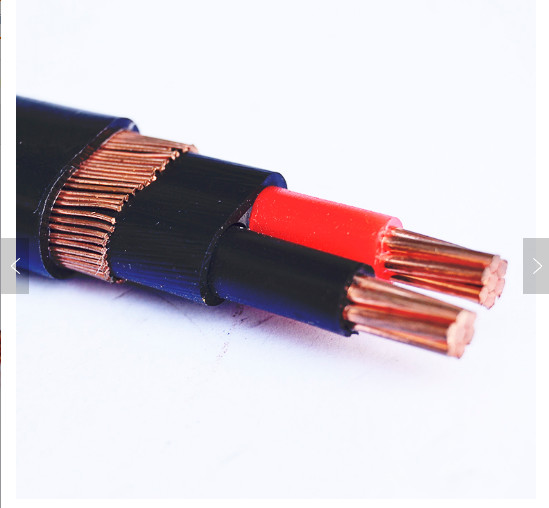

Armoured XLPE Electrical Cable For Power Transmission And Distribution

Categories	Armoured Electrical Cable
Brand Name:	Huanghe
Model Number:	YJV72 YJLV72
Certification:	IOS OHSAS CCC IEC
Place of Origin:	China
MOQ:	200
Payment Terms:	TT/Western Union /LC
Supply Ability:	50000meters per week
Delivery Time:	5-8days
Packaging Details:	wooden drum
Conductor material:	Aluminum
Type:	LV HV MV
Application:	Customized Electrical Wire Power Cable
Jacket:	PVC
Insulation:	XLPE
Color:	Customized

Contact Now

Add to Cart

Company Info.

Henan Interbath Cable Co.,Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Armoured XLPE Electrical Cable For Power Transmission And Distribution

Armoured XLPE Electrical Cable For Power Transmission And Distribution

Armoured Electrical Cable is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz lines.

The cable consutrue standard allows :

1 Conductor

Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2 Insulation
PVC based thermoplastic or XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.
3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.
4 Armor
Galvanized round wires, or flat strips, completely covering the assembly of cores and a counter helix of galvanized steel tape on top; or two layers of steel tape, complying to the applicable requirements of IEC 60502-1.
5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.

6 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.

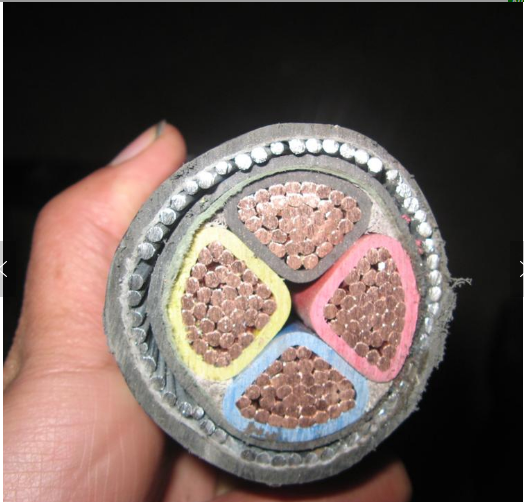

Underground XLPE insulated PVC sheath power Armoured Electrical Cable

Armored Cable Type		Low Voltage Armored Power Cable Specification
Copper Core	Aluminum Core	Low Voltage Armored Power Cable Specification
VV22	VLV22	Galvanized Steel Tape Armored Power Cable With PVC Insulation and PVC Sheath
VV23	VLV23	Galvanized Steel Tape Armored Power Cable With PVC Insulation and PE Sheath
VV32	VLV32	Fine Steel Wire Armored Power Cable With PVC Insulation and PVC Sheath
VV33	VLV33	Fine Steel Wire Armored Power Cable With PVC Insulation and PE Sheath
VV42	VLV42	Thick Steel Wire Armored Power Cable With PVC Insulation and PVC Sheath
VV43	VLV43	Thick Steel Wire Armored Power Cable With PVC Insulation and PE Sheath
YJV22	YJLV22	Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PVC Sheath
YJV23	YJLV23	Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PE Sheath
YJV32	YJLV32	Fine Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath
YJV33	YJLV33	Fine Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath
YJV42	YJLV42	Thick Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath
YJV43	YJLV43	Thick Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath

Underground XLPE insulated PVC sheath power Armoured Electrical Cable
