Small Sealant Extruder , Insulating Glass Silicone Sealant , Glue Nozzles

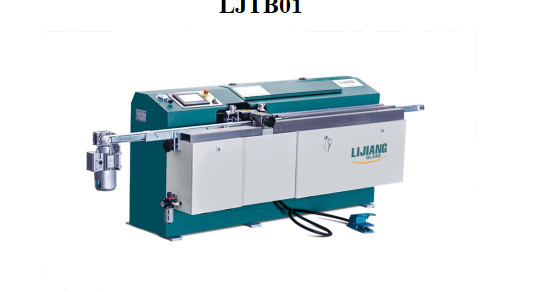

Automatic Butyl Extruder MachineLJTB01

Application

LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.

Equipment details

KINCO Touch Screen

Clear interface, Simple operation, Smart touch screen,Updated programming.

Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Alarm system

Automatically alarm system, reminding adding butyl.

Germany Maximator Cylinder

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

Germany Siemens parts

Adopt Siemens brand, stable performance.

Glue cylinder

Adopt the upright structure, easy to change butyl.

Guiding Wheel

Using guiding wheel to help arc frames coating.

Sensor

Automatically measure the width of frame, the distance of nozzle can be adjustable.

TEFLON glue nozzles

Adopt Teflon glue nozzles, keep spreading quickly.

Special material Belt

Using non-adhesive belt, keep clean.

Crossbeam adjustable structure

Crossbeam adjustable structure controls the spreading height.

Automatic filter function

Automatically filter debris, keep spreading evently.

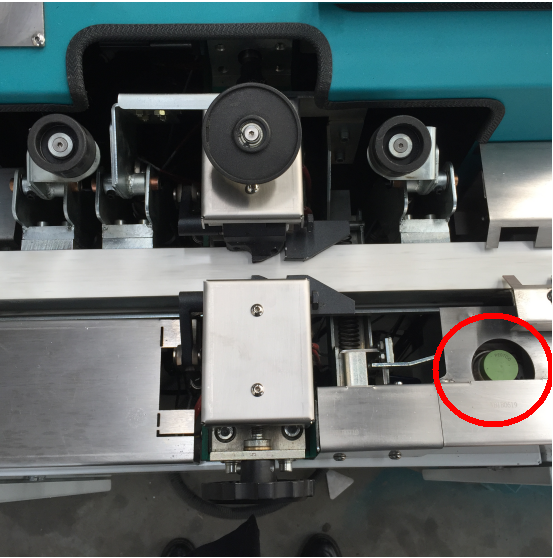

Special structure

The special part controls both sides of nozzle opening and closing at the same time.

Auto-centering and auto-clamping.

• Leading Technology:

• Stable temperature device makes it convenient to adjust the sealing material automatically according to the changed coating speed.

• The coating speed is up to 47m/min, save more than 40% butyl than others, only need 7g/m.

• Quickly heating function, preheat the machines with only 20 minutes per day, improve work efficiency.

• Technical Data

• Main components
