| Brand Name: | A-wei lighting |
| Model Number: | AW-HB610-2 |
| Certification: | CE, RoHS, ETL, DCL,SAA |
| Place of Origin: | Made in China |
| MOQ: | 100 |
| Price: | Negotiable |
| Payment Terms: | By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C |
| Supply Ability: | 5000PCS/Month. |
| Delivery Time: | 5-7 working days for sample,10-15 working days for mass production orders |
| Packaging Details: | 1pc/carton |
| Product Name: | 150 watt led high bay lights |
| Material: | Die-casting Aluminum |
| Input voltage(v): | AC85-265V |
| IP Rate: | IP65 |
| Power: | 100W 150W 200W |
| Working Life: | >50000hrs |
| Color temperature(cct): | 3000K-6500K |
| Wrranty: | 5 years |
| IK Rate: | IK08 |
| Power Factor: | >0.95 |
| Power Efficiency: | 92% |
| Application: | Basketball stadium |
| Company Info. |
| Jiangsu A-wei Lighting Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

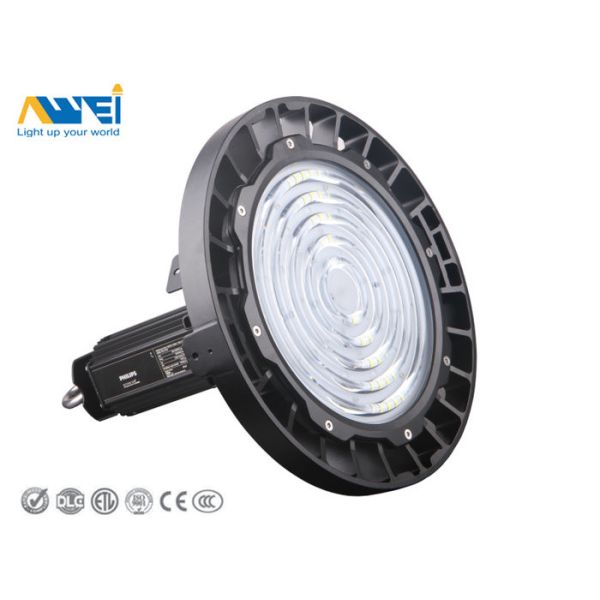

150w Led High Bay Light UFO High Bay Light Fixture IP65 150lm/w For Warehouse CE Approved
Description:
Using a one-piece structure, structural performance is stable.
light, high stability, High CRI
Meanwell with high power;
Lens with anti-glare design, greatly reducing the glare problem.
12°/60°/90°beam angle (optional)
Applications:
Factory
Basketball stadium
Warehouse
Toll station
Gas station
Industrial and mining area
Exhibition building
Specifications:
| Product model | Color rendering index | Ra>70 | |
| Input voltage | AC85-265V | Light distribution | Symmetrical / circular spot |
| Freqency range | 50Hz/60Hz | Light design | LED+Lens |
| Tatal harmonic distortion | ≤20% | LED Junction temperature | 125℃ |
| Power factor | >0.95 | Ambient temperature | -20℃——+40℃ |
| LED Working voltage | DC38-50V | Storage temperature | -25℃——+65℃ |
| LED quantity | Philli280pcs 3030LED | Working life-span | >50,000H |
| LED consumption | 138W | Connect wire | Brown L Live wire |
| System consumption | 150W | Blue N Zero line | |
| LED luminous efficiency | 150LM/W | Yellow/Green G GND | |
| LED luminous | 22500LM | Color of lamp shell | Soil gray |
| Lamp's efficiency | >91% | Certificate | CE, RoHS |
| Illuminance uniformity | >0.8 | Light emitting anglee | 12°/60°/ 90° |
| Color temperature | warm white:3000K; naturally white:4000-4500K; Cool white:5700-6500K | Net weight | 6.05KG |
Competitive Advantage:
Cost-effective mining lamp.
Design process simple, easy to install
3 years - - 5 years warranty optional
OEM optional
Line Drawing:

Product pictures:

Application For Basketball Stadium Picture:

|
