| Categories | Shrink Packaging Equipment |
|---|---|
| Brand Name: | Sunswell |
| Model Number: | MB |
| Certification: | CE SGS |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/year |
| Delivery Time: | 60 days after receiving down payment |
| Packaging Details: | Wooden case |
| Product name: | Perfect PE film bottle shrink packaging machine / equipment / line |
| After-sales service provided: | Engineers available to service machinery overseas,Online support |
| Packaging material: | Wood |
| Function: | PE Film Packaging Machine |
| Packaging type: | Bottles,Cans |
| Usage: | Pack the product with shrinking film |
| Packing material: | PE |
| Application: | Beverage |
| Driven type: | Electric |
| Condition: | New |
| Company Info. |
| Zhangjiagang Sunswell Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

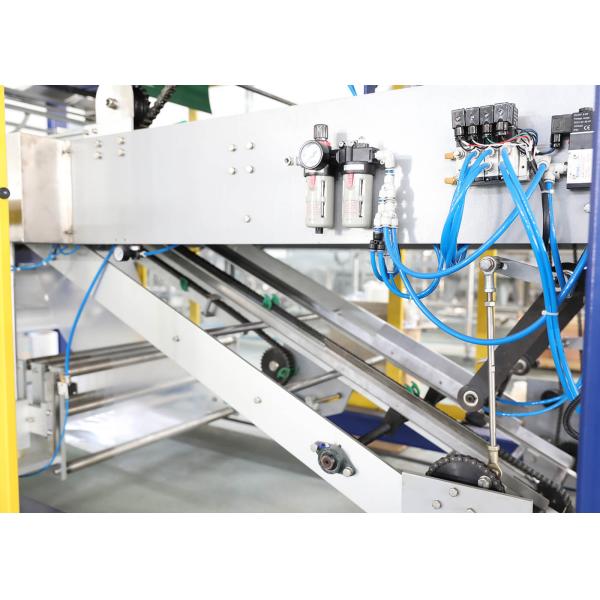

PE Film Automatic Liquid Bottle Cardboard Tray Heat Shrink Wrapping Packing Machine
Technical parameter
1) Power supply. Total power : 380/220V ,75KW (three-phase )
2) External gas source : 4-6kgf/cm2
3) main motor: 380V 3300W
4) Bottle separate electricity motor: 380V 820W*2
5) Exit belt motor : 380V 750W
6) Film cutting electricity motor :380V 820W
7) Film feeding electricity motor: 3.3W
8) Bottle entry plate chain electricity motor : 380V 1100W
9) Whole bottle motor :380V 250W
10) Machine size (L*W*H) :13500*1215*2150mm
(Can make according to special requirement).
11) ackage piece speed : 45package /minute
12) Package product size : can according to client special
requirement.
13) Working platform height :L1150+50mm (can making according to
special requirement).
14) Conveyor belt : shanghai
15) Usage film type : PE film and can use color film
16) PE film width PE: according to client requirement , film
thickness: 0.07mm-0.13mm;
17) Film shrinkage ratio : length wise direction 70-80%, cross wise
20-30%.
18) Circumstance condition: humidity 98%, temperature:20-40ºC.
19) Noise: at working circumstance, noise 75DB.
20) Whole machine all set safe protection device
Main Electricity collocation list
| No | Name | Specification | Number | Brand | Place of origin |
| 1 | Touch screen | 10.7" | 1set | SIEMENS | Germany |
| 2 | Servo electric motor | 5set | |||
| 3 | Servo controller | 5set | |||
| 4 | PCC controlling system | 1pcs | |||
| 5 | Manipulation plate | 1pcs | |||
| 6 | Bus connector interface | RS-232. | 1pcs | ||
| 7 | Input and output module | 6piece | |||
| 8 | Photocell | PEPPERL+FUCHS "P+F" "P+F" | Germany | ||
| 9 | Pneumatics | FESTO | Germany | ||
| 10 | Gear box | 4pcs | Transmission Equipment Co.,Ltd | China | |
| 11 | Force conveyor electricity motor | 2pcs | Transmission Equipment Co.,Ltd | China | |
| 12 | Back Electricity shrink tunnel motor | 3pcs | Transmission Equipment Co.,Ltd | China | |
| 13 | Weather belt | 2-3pcs | Habsit | Swiss | |
| 14 | Frequency converter | DANFOSS | Denmark | ||
| 15 | Hot glue machine | Dynatec | America | ||
| 16 | Bearing | SKF or same Grade product | Swiss | ||
| 17 | Linear bearing | SKF or same Grade product | Swiss | ||
| 18 | Synchronous belt | 1pcs | |||
| 19 | Pneumatic shaft/axis | 2pcs | Zhongguo Hangtian | China | |
| 20 | Conveyor chain | Shanghai lilai | China | ||
| 21 | Electricity component | Schneider | France |

|
