100cr6 Chrome Steel Balls For Polishing Milling 9MM 9.525MM 10MM 11.113MM G60

Categories	Chrome Steel Balls
Brand Name:	JN
Model Number:	9MM 9.525MM 10MM 11.113MM
Certification:	SGS ISO
Place of Origin:	China
MOQ:	500kg
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability:	50 Tons per Month
Delivery Time:	7-15 days
Packaging Details:	Ploy bag+25kg carton box+1000kg wooden box
Produce Name:	Chrome Steel Bearing Ball
Grade:	G60
Hardness:	HRC58-65 HRC
Standard:	100cr6
Tolerance:	0.002~0.02mm refers to grade
Application:	Polishing Milling Machine

Contact Now

Add to Cart

Company Info.

Shandong JinNai International Trade Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

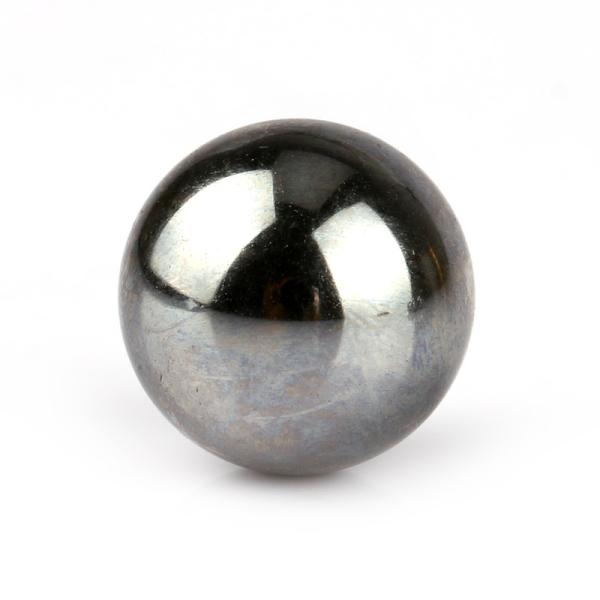

100cr6 Chrome Steel Ball For Polishing Milling 9MM 9.525MM 10MM 11.113MM G60

Characteristics

Low alloy hardened chromium steel balls, they show excellent hardness, wear resistance,

very good surface finishing and dimensional stability.

Applications

Precision bearings, automotive components (brakes, steering, line shaft), ball transfer units,

linear ball bearings, bike and motor-bike components, appliances, quick couplings,

machine tool, lock mechanisms, conveyor belts, skates, ball pens, pumps, castors,

measurement instruments, valves, recirculating balls.

Utilized in browning, polishing and milling machineries.

Chemical Composition

%C	%Si	%Mn	%P	%S	%Cr	%Mo	%Cu	%Al	%O
0.93-1.05	0.15-0.45	0.60-0.80	0.025 max	0.015 max	1.65-1.95	0.20-0.35	0.30 max	0.050 max	0.0015 max

Range

Diameters	U.o.M.	Diameters	U.o.M.	Precision grades (ISO 3290-1 / DIN 5401 / AFBMA)
0.250 - 300.000	[mm]	1/64 - 12	["]	G10-15-16-20-24-25-28-40-48-50-60-80-100-200-300-500-600-700-1000

Technical data

Property	Type	U.o.M.	Values	U.o.M.	Values
Hardness	Mechanical	[HRC]	60 - 66	-	-
Ultimate compressive strength	Mechanical	[MPa]	2500 - 2600	[psix10^3]	362 - 377
Service temperature	Thermal	[ºC]	-60 / 150	[ºF]	-76 / 302
